Magnesia Carbon Brick has excellent resistance to spalling, rust and excellent oxidation resistance. It can be used in electric furnaces, the second ladle, etc., and is widely popular in the steelmaking industry. It uses high-purity, high-density, molten large crystalline magnesium oxide and high-purity graphite as the main raw materials, adding an appropriate amount of antioxidants, and using a high-pressure molding process, using phenolic resin as a binder. This product is mainly used in the converter lining, which is in direct contact with molten steel and molten slag. It has the advantages
Keywords：
Category：
Shape Refractory
E-mail:
154872569@qq.com

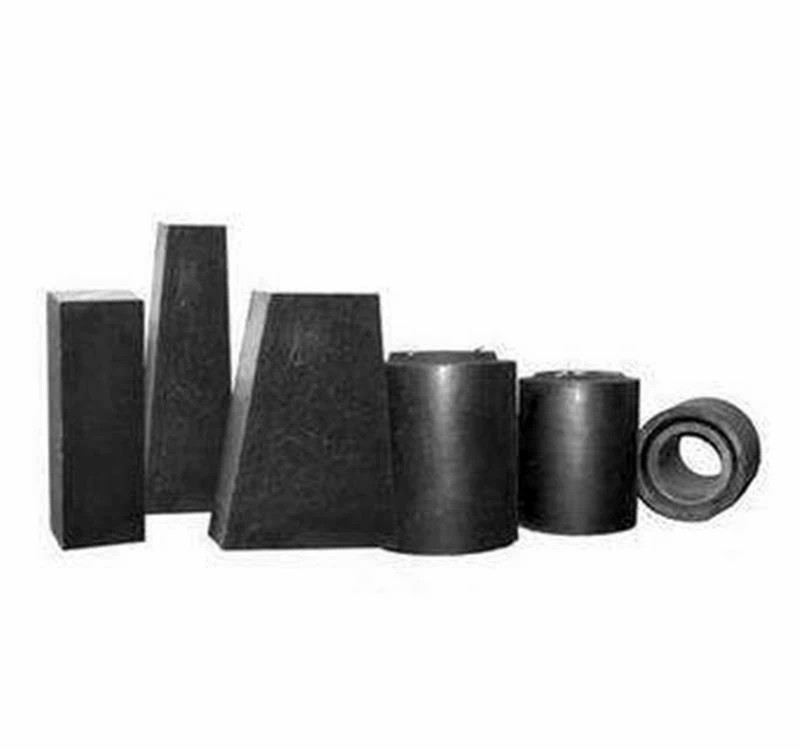

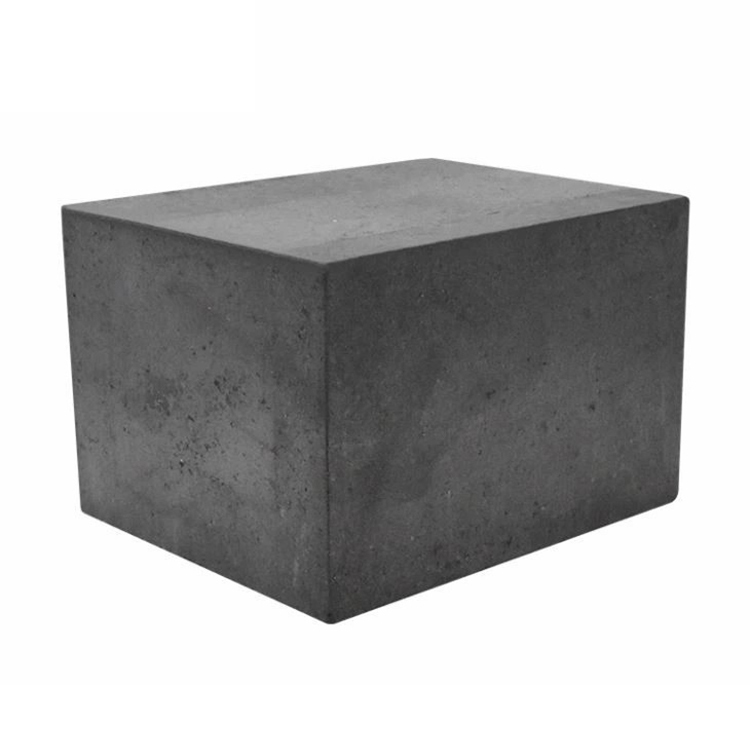

Magnesia Carbon Brick Details
Magnesia Carbon Brick has excellent resistance to spalling, rust and excellent oxidation resistance. It can be used in electric furnaces, the second ladle, etc., and is widely popular in the steelmaking industry. It uses high-purity, high-density, molten large crystalline magnesium oxide and high-purity graphite as the main raw materials, adding an appropriate amount of antioxidants, and using a high-pressure molding process, using phenolic resin as a binder. This product is mainly used in the converter lining, which is in direct contact with molten steel and molten slag. It has the advantages of high strength, strong slag resistance, good thermal shock stability and high refractoriness.
Advantages
Magnesia Carbon Brick has proper residual expansion, low thermal conductivity and better insulation performance than magnesium aluminum carbon brick. The performance of magnesium aluminum carbon brick is between magnesium carbon and aluminum magnesium carbon. It belongs to high melting point basic oxide material, which has high heat resistance, strong slag resistance, good thermal shock resistance and low creep under high temperature. This brick has been used in the ladle refining slag line and has achieved good results. It is also used in the lining part of AC electric arc furnace, DC electric arc furnace, converter and other components.
Applications
Magnesia Carbon Brick has the following applications:
-EAF(Electrick arc furnace)
-Ladle
-Basic oxygen furnace
Specifications
MgO and carbon content range from 84% to 90%
Widely used throughout metallurgical industry
Physical And Chemical Indicators
|
STEEL LADLE |
|||||||||
|
Brand |
Chemical Properties (%) |
Physical Properties |
Main Application |
||||||
|
MgO |
FC |
Al2O3 |
AP (%) |
BD (g/cm3) |
CCS (MPa) |
HMOR (1400ºCX0.5hr) |
|||
|
LF 8 BI |
90 |
8 |
2 |
4 |
3 |
45 |
8 |
Bottom Impact |
|
|
LF 8 BN |
90 |
8 |
2 |
4 |
3 |
45 |
6 |
Bottom Non Impact |
|
|
LF 10 BC |
88 |
10 |
2 |
4 |
3 |
45 |
8 |
Bottom Conical/Splash Pad |
|
|
LF 12 MP |
86 |
12 |
2 |
4 |
3.05 |
45 |
10 |
Metal Zone Purging |
|
|
LF 12 MN |
86 |
12 |
2 |
5 |
3.05 |
40 |
6 |
Metal Zone Non Purging |
|
|
LF 14 SP |
84 |
14 |
2 |
3 |
3.1 |
40 |
10 |
Slag Zone Purging |
|
|
LF 14 SN |
84 |
14 |
2 |
3 |
3.1 |
40 |
8 |
Slag Zone Non Purging |
|
|
LF 13 FB |
85 |
13 |
2 |
5 |
3 |
40 |
6 |
Free Board |
|
