Insulation refractory castable is an amorphous light-weight thermal insulation material formulated with high-quality light aggregate refractory powder, binder and admixture. It is castable refractories to improve thermal insulation by using refractory aggregate of high porosity. It is generally used in lining material in various heat treatment furnace. Our companys products are contributing in saving-energy by high thermal insulation property. Insulation refractory castable with low bulk density, and the basic body density is about 0.8-1.5. The castable contains many pores, low bulk density, sm
Keywords:
Category:
Monolithic Refractory
E-mail:
154872569@qq.com
Insulation Refractory Castable Details

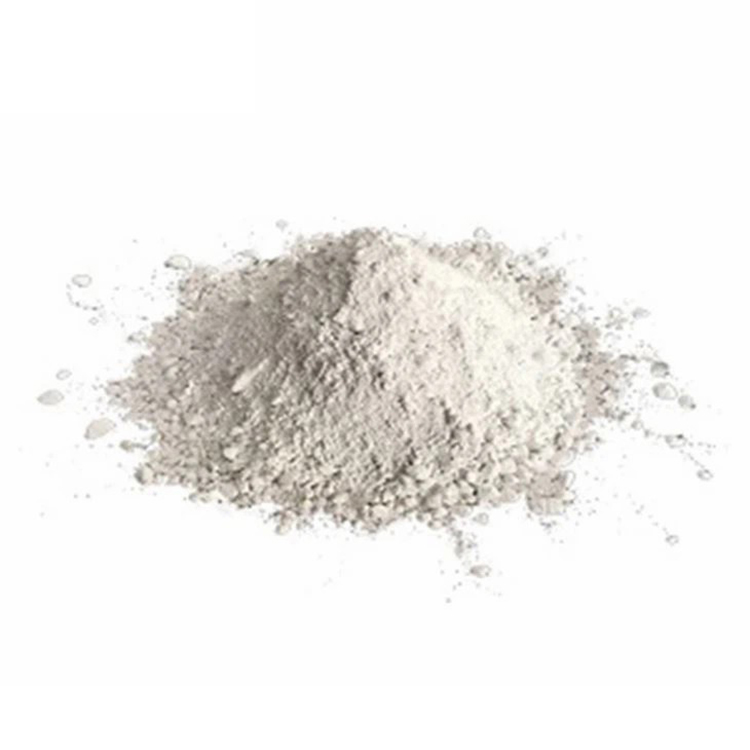

Insulation refractory castable is an amorphous light-weight thermal insulation material formulated with high-quality light aggregate refractory powder, binder and admixture.
It is castable refractories to improve thermal insulation by using refractory aggregate of high porosity. It is generally used in lining material in various heat treatment furnace. Our company's products are contributing in saving-energy by high thermal insulation property.
Insulation refractory castable with low bulk density, and the basic body density is about 0.8-1.5. The castable contains many pores, low bulk density, small thermal conductivity and good thermal insulation effect. Lightweight castable is made of aluminate cement, high alumina fine material, ceramsite, plus several additives. The product has light volume, high compressive strength, acid and acid gas corrosion resistance. Heat insulation, heat preservation, low water absorption and other characteristics, simple construction, is an ideal product for construction with alkali-resistant parts at high temperature.
Insulation refractory castable mainly used as anti-corrosion lining, such as flue, chimney, pickling tank, nitric acid concentration tower, acid recovery furnace and other container lining corroded by acidic high temperature gas, etc., the use temperature is 900-1200 ℃.
It is suitable for the furnace body, furnace wall and furnace roof of medium and low temperature thermal engineering equipment. After pouring on the site, the insulation layer becomes a whole, and the insulation performance is enhanced. It is used in various power station boilers and industrial furnaces. Excellent heat insulation and energy saving effect.
Features
High refractoriness
Stable chemical properties, good chemical corrosion performance
High compression strength, good structural integrity
Small volume density and low thermal conductivity
Good thermal insulation
Good thermal shock resistance and long service life
Light weight, high strength, uniform air tightness
Acid and alkali resistant
Applications
Nonferrous Metal Furnace
Reheating Furnace
Incinerator
Various General Furnace
Petrochemical Plant
Heater, Boiler
Physical And Chemical Indicators
Brand |
LWC-170 |
LWC-160 |
LWC-150 |
LWC-140 |
LWC-130 |
LWC-120 |
|
Application Limit Temp ℃ |
1,700 |
1,600 |
1,500 |
1,400 |
1,200 |
1,100 |
|
Bulk Density (g/cm3) |
1.45 |
1.5 |
1.55 |
1.45 |
1.25 |
1.15 |
|
Water Required for Casting (%) |
18-23 |
20-25 |
21-25 |
28-35 |
40-45 |
45-50 |
|
CCS/MOR(MPa) |
at110℃x24h |
15(4) |
10(3.0) |
12(3.5) |
11(3.3) |
8(3) |
8(2.5) |
at1,200℃x3h |
14(4) |
10(3.0) |
11(3.5) |
5(2.5) |
4(2) |
4(2) at1,000℃ |
|
at1,400℃x3h |
15(5) |
14(8.1) |
22(10.8) |
15(3) |
- |
- |
|
Permanent Linear Change (%) |
at110℃x24h |
-0.08 |
-0.06 |
-0.12 |
-0.06 |
-0.09 |
-0.09 |
at1,200℃x3h |
-0.1 |
-0.1 |
-0.18 |
-0.4 |
-0.8 |
-0.65 at1,000℃ |
|
at1,400℃x3h |
0.1 |
-0.5 |
0.1 |
-1.0 |
- |
- |
|
Thermal conductivity(W/m.k) |
at400℃ |
0.6 |
0.5 |
0.52 |
0.32 |
0.18 |
0.16 |
at1,000℃ |
0.8 |
0.6 |
0.64 |
0.41 |
0.24 |
0.21 |
|
Chemical Analysis(%) |
Al2O3 |
90 |
75 |
60 |
43 |
35 |
33 |
SiO2 |
- |
15 |
30 |
40 |
47 |
49 |
Semi-silica brick refers to an aluminum-silicon refractory product with a SiO2 content of greater than 65% and an Al2O3 content of 15% to 30%. They generally use clay containing quartz impurities or native kaolin refractory clay or tailings and pyroph...
The Al2O3 content of anchor bricks is above 55%, and some users require that the alumina content reach 75%, and the load softening temperature of 75% bricks reaches 1550C. However, in actual use, anchor bricks with high aluminum content cannot be enough. The key is Flexibility is the most important t...
Products Desc
Products Description The main components of alkali resistant bricks are clay, high alumina, quartz sand, bauxite and other alkali resistant materials, among which quartz sand and bauxite can improve alkali resistance, clay and high alumina can increase sintering pressure, so that alkali-resistant bri...
