Generally speaking, airgel felt is a flexible insulation felt. It is a flexible insulation felt made of nano-silica or metal airgel as the main material and compounded with carbon fiber or ceramic glass fiber wool or pre-oxidized fiber felt through a special process. The thickness and size of the airgel felt can be selected according to actual needs. The greater the thickness, the better the thermal insulation performance of the airgel felt. Thin airgel felt can save more space, but it will affect its thermal insulation effect. In terms of width, it is generally shipped in rolls. The wider the
Keywords:
Category:
Insulation Thermal Material
E-mail:
154872569@qq.com

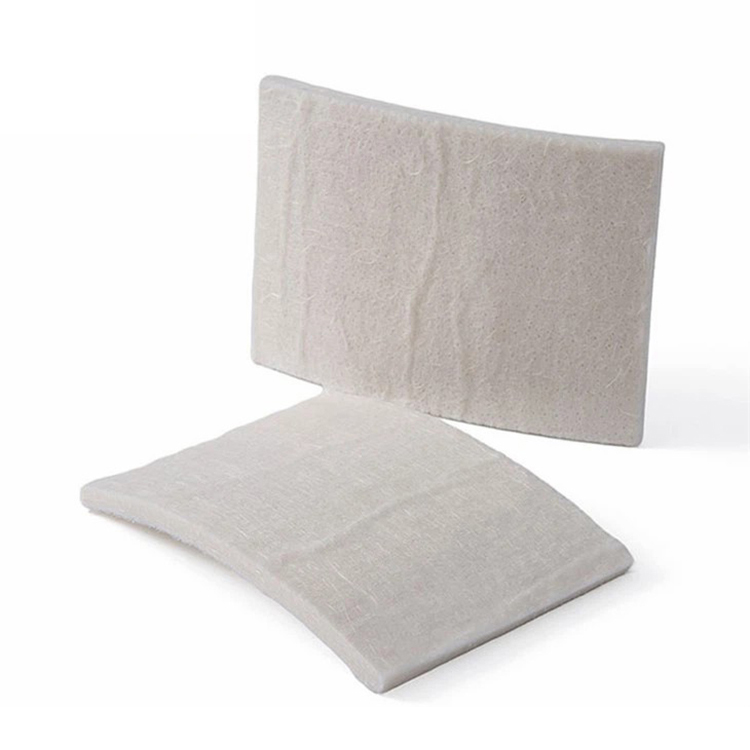

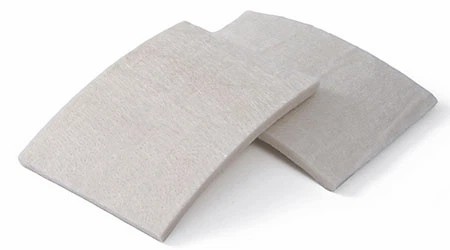

Airgel Felt Details
Generally speaking, airgel felt is a flexible insulation felt. It is a flexible insulation felt made of nano-silica or metal airgel as the main material and compounded with carbon fiber or ceramic glass fiber wool or pre-oxidized fiber felt through a special process.
The thickness and size of the airgel felt can be selected according to actual needs. The greater the thickness, the better the thermal insulation performance of the airgel felt. Thin airgel felt can save more space, but it will affect its thermal insulation effect. In terms of width, it is generally shipped in rolls. The wider the width, the easier it is to install and use, saving consumption. It can also reduce the seams between products and prevent heat loss due to seams.
1. Excellent thermal insulation effect
The thermal insulation effect of airgel felt is 2-5 times that of traditional insulation materials.
2. Reduce the thickness of the insulation layer
It achieves the same insulation effect at a fraction of the thickness of traditional materials. After insulation, heat loss is small and space utilization is high.
3. Hydrophobicity and fire resistance
It is relatively hydrophobic and can effectively prevent water from entering pipes and equipment.
Brand Property |
Airgel Felt |
Thermal conductivity W/(m.k) |
0.020(25℃),0.036(300℃) |
Maximum service temperature (℃) |
650 |
Density (kg/m³) |
160-240 |
Hydrophobicity rate (%) |
99.9 |
Combustion performance grade |
A |
Compression rebound rate (%) |
96 |
Permanent change rate of heating line (%) |
- 0.3 |
Tensile strength (kpa) |
1409 (landscape orientation),366 (portrait orientation) |
Surface property |
Bulk drain |
Colour |
White/grey blue |
Size(mm) |
Wide:1500±5, Thickness:5/10/15 (customizable 3/6) |

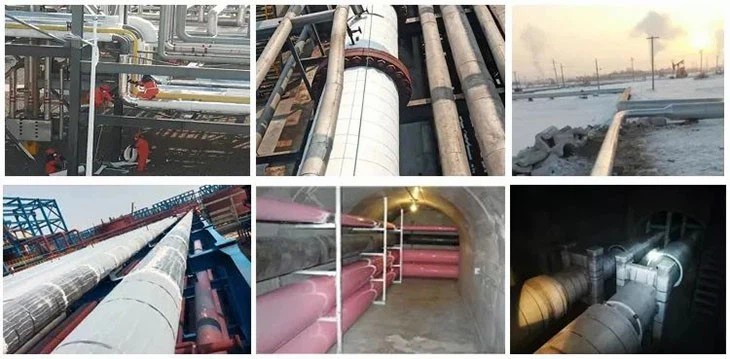

01Long-distance heat transfer pipe network
Steam pipeline network, such as thermal power plants, oil exploration companies, etc.;
Urban central heating primary pipe network
02Space-limited thermal insulation scene
Gas turbines, steam turbines and other main equipment of power stations;
Integrated pipe gallery;
buried steam pipes;
Arrange conduits in a compact manner;
03High temperature and high humidity environment
Heating power, chemical and other enterprises in the southern coastal areas;
Lay out pipes in trenches (to solve the problem of CUI corrosion under the insulation layer);
04Double requirements for fire protection and heat insulation
new energy vehicles;
Power battery (battery case);
Fire and smoke exhaust ducts;
Semi-silica brick refers to an aluminum-silicon refractory product with a SiO2 content of greater than 65% and an Al2O3 content of 15% to 30%. They generally use clay containing quartz impurities or native kaolin refractory clay or tailings and pyroph...
The Al2O3 content of anchor bricks is above 55%, and some users require that the alumina content reach 75%, and the load softening temperature of 75% bricks reaches 1550C. However, in actual use, anchor bricks with high aluminum content cannot be enough. The key is Flexibility is the most important t...
Products Desc
Products Description The main components of alkali resistant bricks are clay, high alumina, quartz sand, bauxite and other alkali resistant materials, among which quartz sand and bauxite can improve alkali resistance, clay and high alumina can increase sintering pressure, so that alkali-resistant bri...
