Refractory Anchor Details

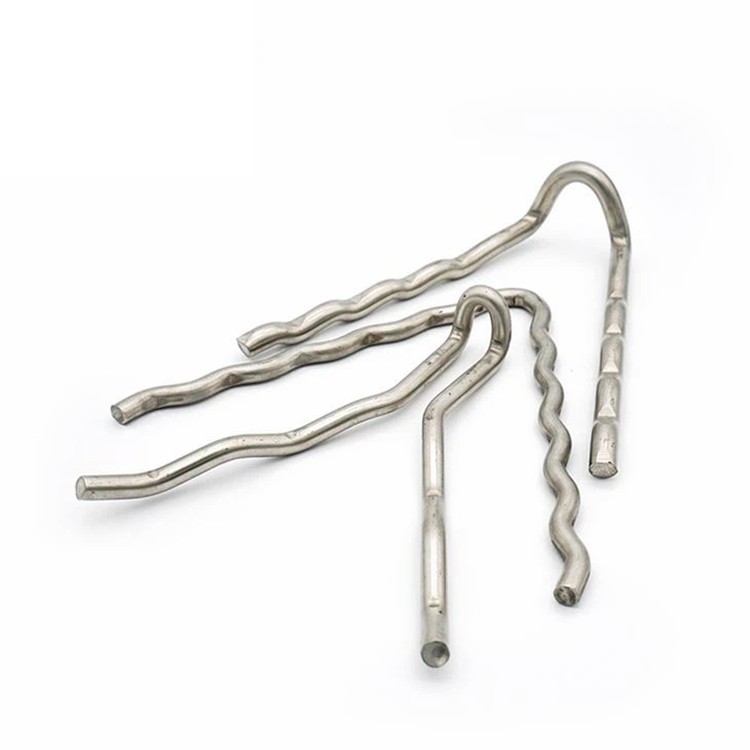

Refractory anchor is a structural member that connects and fixes light-weight refractory materials such as ceramic fibers, light weight insulation bricks, and unshaped refractory materials with the metal wall of the kiln.
Refractory anchor of different structures and different materials should be selected according to industrial kiln structure, furnace temperature, and ambient atmosphere.
The special anchor for the integration of thermal insulation and decoration is mainly used for fixing between the thermal insulation integrated plate and the integrated plate, which increases the bearing area of the screw and makes the plate and the wall more fixed.
Refractory anchor is widely used in light and heavy industrial and civil enterprises such as petroleum, chemical industry, electric power, bridges, construction, mechanical hardware, textile printing and dyeing, medical treatment, decoration, shipbuilding, etc.
Features
Wide temperature range: 800℃-1400℃.

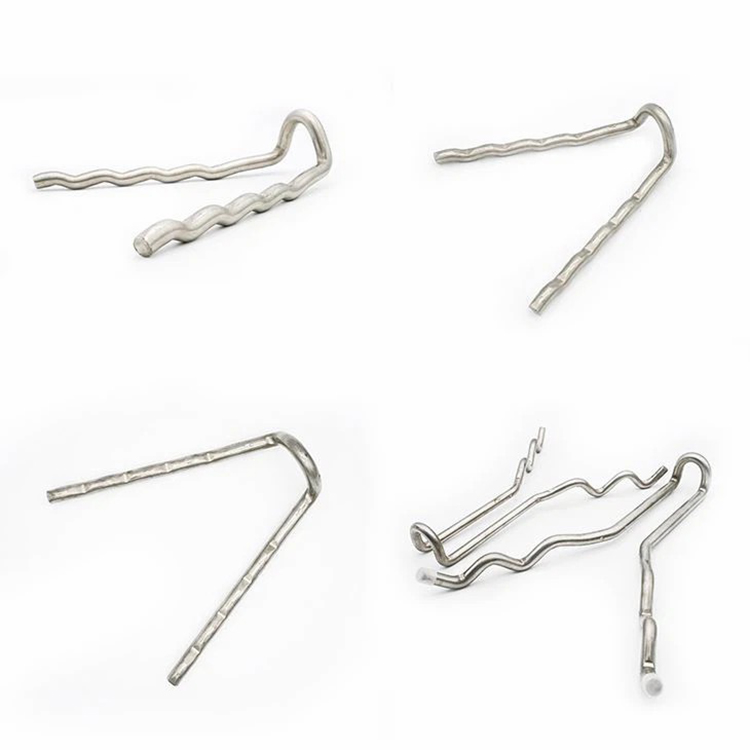

Various forms of anchors: straight, cross, L, Y, V, etc.
The anchoring structure is reasonable, and the anchoring is firm and reliable.
Installation is simple and fast.
Application
Fixation of ceramic fiber modules and folding blocks.
Fixation of various refractory bricks and castables.
Anchor fixing of fiber spraying.
Fixed connection of various high-temperature plates and high-temperature devices.
Physical And Chemical Indicators
Product Type |
Anchor Products |
|
Classification Temperature(°C ) |
1260 |
1400 |
Name |
Pin,Washer,Insultwist Stud,Anchor Bolt V-anchor,Y-anchor,U-anchor |
|
Material |
SS304 |
SS310 |
Application Temperature (°C) |
870 |
1035 |
Technical Criteria |
OCr18Ni9 |
Cr25Ni20 |
Packing |
Wooden Box |
Semi-silica brick refers to an aluminum-silicon refractory product with a SiO2 content of greater than 65% and an Al2O3 content of 15% to 30%. They generally use clay containing quartz impurities or native kaolin refractory clay or tailings and pyroph...
The Al2O3 content of anchor bricks is above 55%, and some users require that the alumina content reach 75%, and the load softening temperature of 75% bricks reaches 1550C. However, in actual use, anchor bricks with high aluminum content cannot be enough. The key is Flexibility is the most important t...
Products Desc
Products Description The main components of alkali resistant bricks are clay, high alumina, quartz sand, bauxite and other alkali resistant materials, among which quartz sand and bauxite can improve alkali resistance, clay and high alumina can increase sintering pressure, so that alkali-resistant bri...
