The fiber surface of ceramic fiber wool is smooth and cylindrical, and the cross section is usually circular. Its structure is characterized by high porosity (generally greater than 90%), and large pore size and specific surface area. Since the air in the pores has a good heat insulation effect, the size of the pores in the fiber and the properties of the pores (open pores or closed pores) have a decisive impact on its thermal conductivity. In fact, the internal structure of ceramic fibers is a kind of A mixed structure composed of solid fibers and air, whose microstructure is characterized by
Keywords:
Category:
Insulation Thermal Material
E-mail:
154872569@qq.com

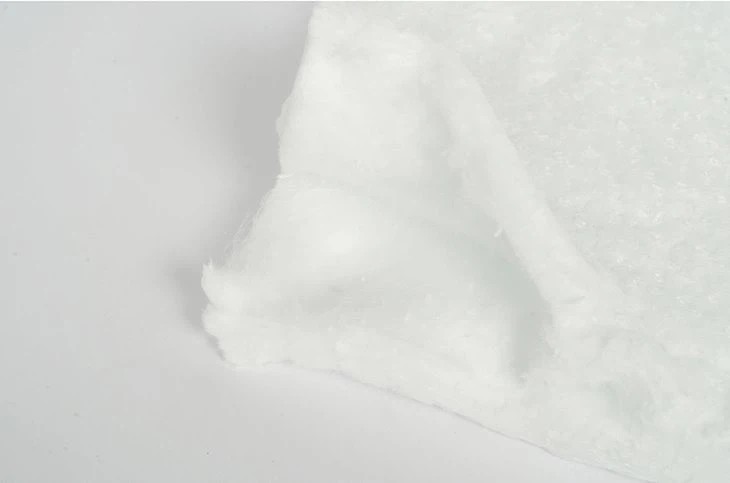

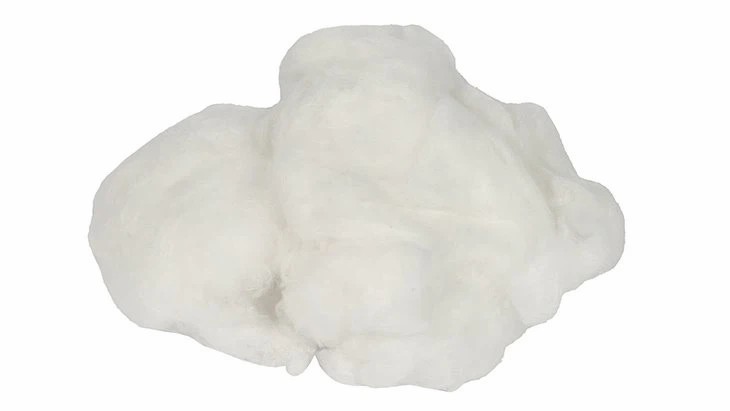

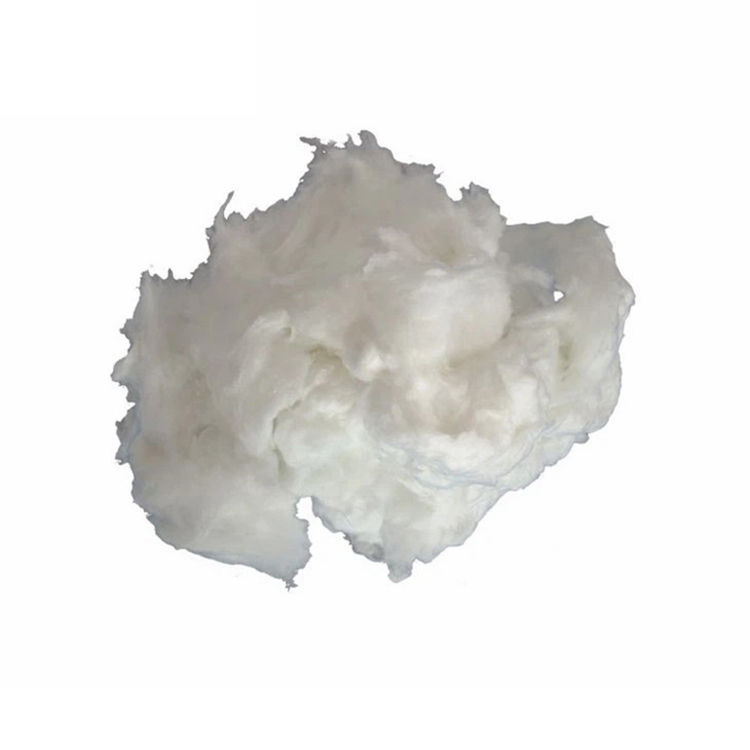

Ceramic Fiber Wool Details
The fiber surface of ceramic fiber wool is smooth and cylindrical, and the cross section is usually circular. Its structure is characterized by high porosity (generally greater than 90%), and large pore size and specific surface area. Since the air in the pores has a good heat insulation effect, the size of the pores in the fiber and the properties of the pores (open pores or closed pores) have a decisive impact on its thermal conductivity. In fact, the internal structure of ceramic fibers is a kind of A mixed structure composed of solid fibers and air, whose microstructure is characterized by the existence of both the same phase and the gas phase in the form of a continuous phase.
Features
(1) The thermal conductivity is low, only 0.03 W/(m K) at room temperature, and 1/5 of clay brick at 1000 °C.
(2) The density of the product is small, generally between 64 and 500 kg/m3.
(3) The heat capacity is low, only 1/72 of refractory bricks and 1/42 of lightweight bricks.
(4) Good processing performance, soft and easy to cut fibers, strong continuity and easy winding.
(5) It has good sound absorption performance and can be used as a high-temperature sound-absorbing material.
(6) Good chemical stability, except for strong alkali, fluorine and phosphate, it is almost not corroded by chemicals.
(7) Good thermal shock resistance.
(8) The insulation performance is good, the volume resistivity at room temperature is 1×1013Ω·cm, and the volume resistivity at 800°C is 6×108Ω·cm.
(9) Ceramic fiber wool have high reflectivity to light waves with a wavelength of 1.8~6.0 μm
Applications
Ceramic fiber wool is usually processed into various styles of ceramic fiber products for selection in various industries. The most important use of ceramic fiber products is thermal insulation in high temperature environments. The application scope covers metallurgy, machinery, electronics, ceramics, glass, chemicals, automobiles, building materials, light industry, military industry, ships, aerospace and other fields.
At present, ceramic fiber products include blankets, felts, boards, paper, cloth, belts, ropes, coiled pipes, tiles, modules, special-shaped parts, plastics, spray coatings, smears, castables, etc.
Physical And Chemical Indicators
Brand Properties |
STD BULK |
HP BULK |
HZ BULK |
|
Chemical Composition(%) |
Al2O3 |
≥44 |
≥45 |
≥34 |
SiO2 |
≥52 |
≥54 |
≥50 |
|
Fe2O3 |
≤1.0 |
≤0.5 |
≤0.5 |
|
Na2O |
≤1.0 |
≤0.2 |
≤0.2 |
|
ZrO2 |
- |
- |
≥15 |
|
Specification Temp. (℃) |
1260 |
1260 |
1430 |
|
Shot content (%) |
≤15 |
≤15 |
≤12 |
|
Fiber Diameter(μm) |
3.5 |
Semi-silica brick refers to an aluminum-silicon refractory product with a SiO2 content of greater than 65% and an Al2O3 content of 15% to 30%. They generally use clay containing quartz impurities or native kaolin refractory clay or tailings and pyroph...
The Al2O3 content of anchor bricks is above 55%, and some users require that the alumina content reach 75%, and the load softening temperature of 75% bricks reaches 1550C. However, in actual use, anchor bricks with high aluminum content cannot be enough. The key is Flexibility is the most important t...
Products Desc
Products Description The main components of alkali resistant bricks are clay, high alumina, quartz sand, bauxite and other alkali resistant materials, among which quartz sand and bauxite can improve alkali resistance, clay and high alumina can increase sintering pressure, so that alkali-resistant bri...
