The main chemical components of chamotte are AL2O3 and SiO2, containing a small amount of Fe2O3 and traces of Na2O, K2O, the main mineral is kaolin.After being calcined at high temperature, it has the characteristics of volume stability, high strength and low water absorption.Widely used in metallurgy, casting, chemical industry, ceramics, electric power, machinery, petroleum and other
Keywords:
Category:
Refractory Raw Material
E-mail:
154872569@qq.com

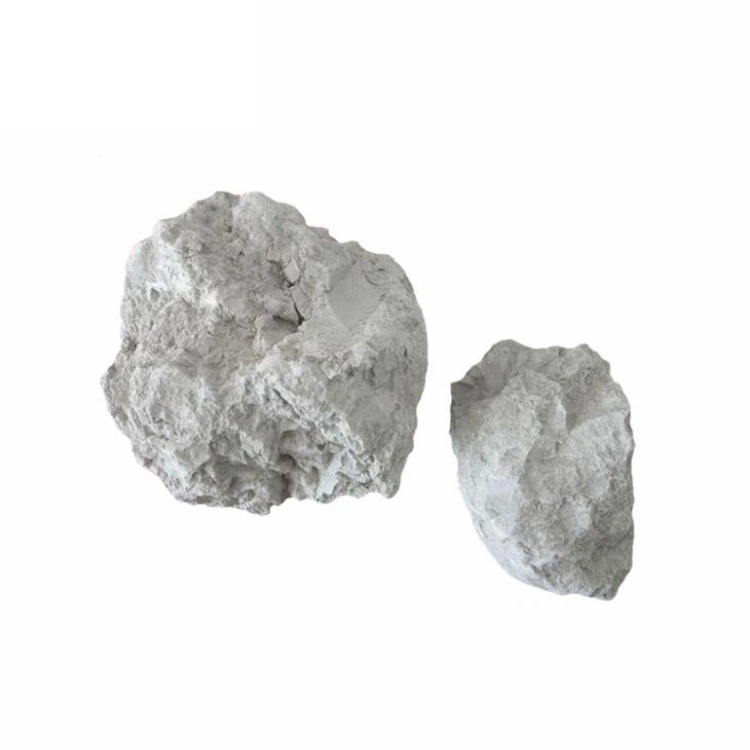

Chamotte Details
Product Details
The main chemical components of chamotte are AL2O3 and SiO2, containing a small amount of Fe2O3 and traces of Na2O, K2O, the main mineral is kaolin, the impurities are mainly alkali, alkaline earth and oxides of iron, titanium, and some organic substances. The standard Al2O3 content of the original chamotte is 38%, after calcination the Al2O3 content is about 44%, and Fe2O3 <2%. The composition is stable, the texture is uniform, the structure is dense, the cross section is shell-like, white, and it is used to produce high-quality clay refractories. It is a first-class hard clay clinker, and various oxides play a fluxing role, which will reduce the refractoriness of the raw materials. The refractoriness of high-quality chamotte can reach above 1750℃.
After being calcined at high temperature, it has the characteristics of volume stability, high strength and low water absorption. The indexes to measure the sintering degree of it generally include true specific gravity, bulk density, porosity, water absorption, and shrinkage rate. The sintered gemstone with good sintering degree has a water absorption rate of less than 5% and a bulk density of more than 2.55g/cm3.
It is a high-quality hard refractory clay produced in Zibo City, Shandong Province, China. It has good whiteness and brightness, and is magnetic.
Features
1.High refractoriness.
2.Physicochemical stability.
3.Bulk density high .
4.Low porosity.
5.Low water absorption.
6.Fully calcined
7.Low impurity content.
8.Pure white.
Applications
Widely used in metallurgy, casting, chemical industry, ceramics, electric power, machinery, petroleum and other industries.
Size of sand: 8-16,16-30,30-60,30-80,60-80,80-120 (mesh):Used for precision casting.
Size of powder: -200mesh,-270mesh,-325mesh: Used for precision casting and refractories.
Size of particles: 0-1mm,1-3mm,3-5mm,5-8mm,8-15mm,0-5mm,0-50mm:Used for refractories.
Physical And Chemical Indicators
Brand |
YNS45 |
YNS45 |
YNS44 |
YNS44 |
YNS43 |
YNS42 |
YNS40 |
A |
B |
A |
B |
||||
AL2O3 % |
46 |
45 |
44 |
44 |
43 |
42 |
40 |
SiO2 % |
49-52 |
49-52 |
50-53 |
50-53 |
50 |
50 |
50 |
Fe2O3 % |
1.0 |
1.15 |
1.3 |
1.5 |
2.0 |
2.5 |
3.0 |
Ti02 % |
0.8 |
0.8 |
0.9 |
0.9 |
1.0 |
1.1 |
1.2 |
K2O+Na2O % |
0.3 |
0.3 |
0.4 |
0.4 |
0.4 |
0.5 |
0.5 |
Ca0+Mg0 % |
0.5 |
0.5 |
0.5 |
0.5 |
0.5 |
0.6 |
0.7 |
Bulk density g/cm³ |
2.58 |
2.55 |
2.52 |
2.50 |
2.45 |
2.40 |
2.37 |
Refractoriness °C |
1780 |
1770 |
1760 |
1750 |
1740 |
1720 |
1710 |
Semi-silica brick refers to an aluminum-silicon refractory product with a SiO2 content of greater than 65% and an Al2O3 content of 15% to 30%. They generally use clay containing quartz impurities or native kaolin refractory clay or tailings and pyroph...
The Al2O3 content of anchor bricks is above 55%, and some users require that the alumina content reach 75%, and the load softening temperature of 75% bricks reaches 1550C. However, in actual use, anchor bricks with high aluminum content cannot be enough. The key is Flexibility is the most important t...
Products Desc
Products Description The main components of alkali resistant bricks are clay, high alumina, quartz sand, bauxite and other alkali resistant materials, among which quartz sand and bauxite can improve alkali resistance, clay and high alumina can increase sintering pressure, so that alkali-resistant bri...
