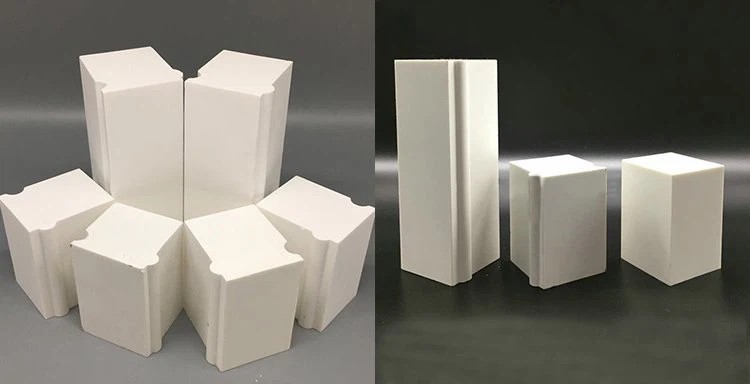

Ceramic Lining Bricks

The ceramic lining brick is pressed and formed by a bidirectional hydraulic press and sintered in a high temperature natural gas kiln. The inner and outer structure of wear-resistant ceramic lining bricks is uniform and consistent and has been tested

Keywords：

Category：

Industrial Ceramic

E-mail:

154872569@qq.com

Inquiry

Ceramic Lining Bricks Details

Product Description

Ceramic lining bricks have the characteristics of high strength, high fracture toughness, low wear, good regularity, impact resistance, abrasion resistance, scientific formulation, dry pressing and high temperature firing. The Mohs hardness is 9, second only to diamond. The construction is convenient, the theoretical wear resistance is 300 times that of manganese steel, and the service life can generally reach 10 times.

Features

Ceramic lining brick features:

1.The main component is high-quality alumina with a content of 92%, with high purity, which can greatly reduce the pollution to the grinding materials.

2.Good wear resistance, wear resistance is 266 times that of manganese steel, effectively prolonging the service life of machinery and equipment.

3.The slurry produced by the wear-resistant ceramic lining brick and high-alumina ball is fine.

4.has the characteristics of corrosion resistance, high density and high mechanical strength.

Application

Wear-resistant ceramic lining brick is an anti-wear product embedded in the inner wall of the ball mill. It can also be used in refractory materials, electronics, ceramics, and high-temperature kilns, which can effectively improve grinding efficiency, reduce grinding costs, and reduce product pollution.

Physical And Chemical Indicators

Brand Properties		ALB-92	ALB-92S	ALB-95
Al2O3(%)		≥92	≥92	≥95
Bulk density(g/cm3)		≥3.65	≥3.68	≥3.68
Wear Loss(%)		≤0.01	≤0.008	≤0.01
Hardness(Mohs)		9	9	9
Water Absorption(%)		≤0.01	≤0.01	≤0.01
Color		white	white	white
Size	Length(mm)	(W1) Width (mm)	(W2) Width (mm)	(H) Height (mm)
End Flat Brick	150	50	50	40/50/60/ 70/77/90
Circle Brick	150	50	45
Half End Flat Brick	75	50	50
Half Circle Brick	75	50	45
Flake Brick	150	25	22.5
Size can be customized
