Cordierite-mullite boards are sintered from mullite and cordierite. The mechanism is that cordierite has a much smaller thermal expansion coefficient than mullite due to its large gaps in the ring structure, and the matching of the expansion coefficients of the two makes the two-phase interface form fine cracks, preventing destructive cracks from forming. extended, thereby greatly improving the thermal stability performance.
Keywords:
Category:
Kiln Furniture
E-mail:
154872569@qq.com

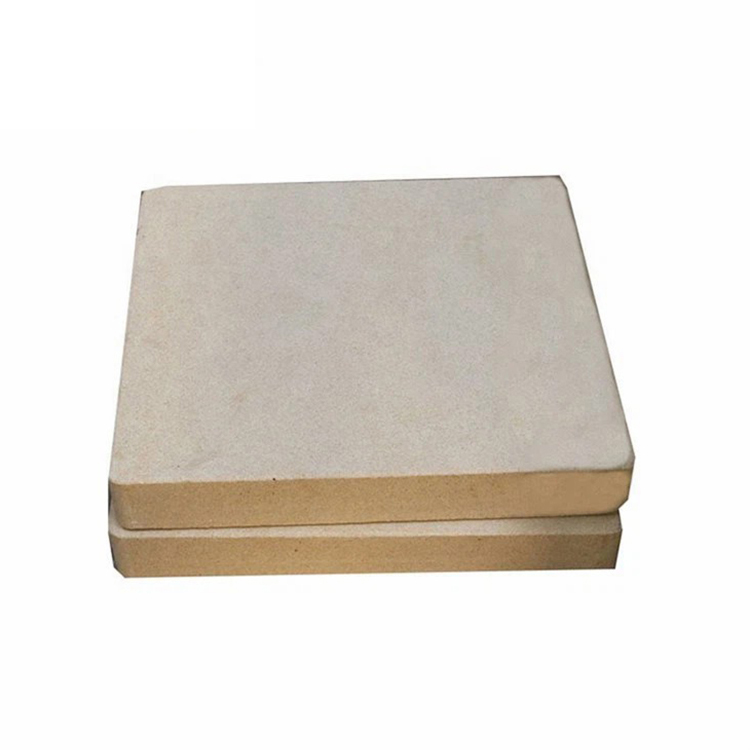

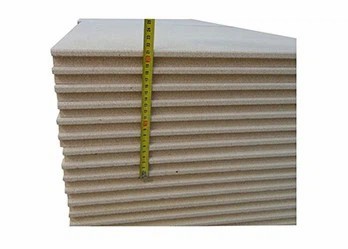

Cordierite-Mullite Board Details
Cordierite-mullite board is fired with mullite as aggregate and cordierite as base material. Since cordierite has a (SiO2)n ring-shaped structure, there are large voids in this structure, so it has the characteristics of small thermal expansion coefficient, while mullite has a large thermal expansion coefficient, resulting in a mismatch between the expansion coefficients of the two materials, making the two materials.
The formation of fine cracks at the phase interface can effectively reduce the thermal stress caused by temperature changes, effectively avoid the spread of catastrophic cracks, and greatly improve the thermal stability of cordierite-mullite refractories; at the same time, because mullite The crystal has high refractoriness (melting point is 1810°C) and high mechanical strength (bending strength at room temperature is 49MPa), so using mullite as aggregate can effectively improve the high temperature strength of the shed.
1. High temperature resistance: It can withstand extremely high temperatures, typically up to 1,400°C (2,552°F) They exhibit excellent thermal stability, maintaining their structural integrity even under rapid temperature changes.
2. Low thermal expansion: These boards have a low coefficient of thermal expansion, meaning they expand and contract minimally when exposed to temperature variations. This property helps to prevent cracking and deformation of the kiln furniture during thermal cycling.
3. Chemical inertness: Cordierite-mullite slabs are chemically inert, meaning they do not react with most chemicals or molten metals encountered in high-temperature processes.
1. Kiln furniture: Cordierite-mullite boards are widely used as kiln furniture in industries such as ceramics, glass, and metallurgy. They provide a stable and heat-resistant platform for supporting ceramic ware, glass sheets, and metal parts during firing processes.
2. Heat treatment furnaces: Cordierite-mullite slabs are used as shelves or supports in heat treatment furnaces where materials need to be exposed to high temperatures for processes such as annealing, sintering, or tempering.
4. Industrial kilns: Cordierite-mullite slabs are utilized in various industrial kilns, including tunnel kilns, roller kilns, and shuttle kilns.
