The production process of carbon bricks is roughly similar to that of other refractory bricks, but the carbon must be prevented from oxidizing at high temperatures, so the roasting of raw materials and the firing of products must be carried out in a reducing atmosphere. Anthracite must be roasted before use to eliminate volatile matter, sulfur, and moisture, and to improve the volume stability, mechanical strength, and oxidation resistance of anthracite. The coke must be dried first to avoid molding difficulties due to excessive moisture content and cracking of the product during the firing pro
Keywords:
Category:
Shape Refractory
E-mail:
154872569@qq.com

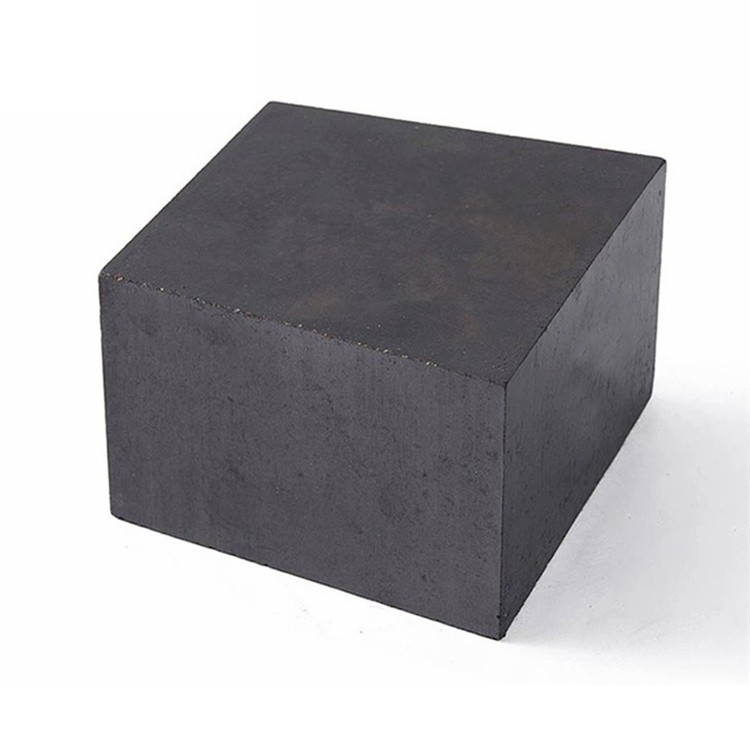

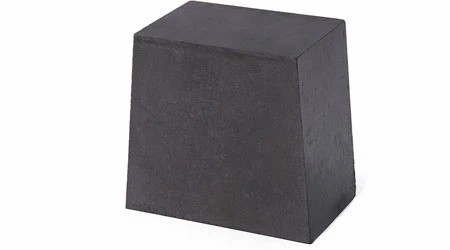

Carbon Bricks Details
The production process of carbon bricks is roughly similar to that of other refractory bricks, but the carbon must be prevented from oxidizing at high temperatures, so the roasting of raw materials and the firing of products must be carried out in a reducing atmosphere.
Anthracite must be roasted before use to eliminate volatile matter, sulfur, and moisture, and to improve the volume stability, mechanical strength, and oxidation resistance of anthracite. The coke must be dried first to avoid molding difficulties due to excessive moisture content and cracking of the product during the firing process. The asphalt must be melted and dehydrated first to make its moisture less than 0.2%, and the dehydration temperature should be 120 to 160°C.
The ingredients are roasted granular anthracite as aggregate, and its particle size depends on the size of the product: 8 to 12 mm for large bricks and 4 to 6 mm for small bricks. The amount of anthracite added is about 60%.
1. High refractoriness and load softening temperature, good thermal shock resistance
2.Not wetted by molten slag, molten iron, etc., and almost not corroded by all acids, alkalis, salts and organic chemicals
3.Good slag resistance, stable volume at high temperatures
4.High mechanical strength and good wear resistance
5.Has good electrical and thermal conductivity
Type |
long |
wide |
thick |
STZ-1 |
230 |
113 |
65 |
STZ-2 |
230 |
113 |
40 |
STZ-3 |
230 |
113 |
30 |
1.Carbon bricks are widely used in the metallurgical industry. Among them, the largest amount of carbon bricks is used in blast furnaces. The bottoms and hearths of many blast furnaces are built with carbon bricks.
2.They are also used in aluminum electrolysers.
3.In addition, carbon bricks are also widely used in electrochemical industry, chemical industry, petrochemical industry, electroplating industry, ferroalloy industrial furnaces (or linings of equipment), acid and alkali tank linings and pipelines, and smelting non-ferrous metals (such as Aluminum, lead, tin, etc.) furnace lining.
Semi-silica brick refers to an aluminum-silicon refractory product with a SiO2 content of greater than 65% and an Al2O3 content of 15% to 30%. They generally use clay containing quartz impurities or native kaolin refractory clay or tailings and pyroph...
The Al2O3 content of anchor bricks is above 55%, and some users require that the alumina content reach 75%, and the load softening temperature of 75% bricks reaches 1550C. However, in actual use, anchor bricks with high aluminum content cannot be enough. The key is Flexibility is the most important t...
Products Desc
Products Description The main components of alkali resistant bricks are clay, high alumina, quartz sand, bauxite and other alkali resistant materials, among which quartz sand and bauxite can improve alkali resistance, clay and high alumina can increase sintering pressure, so that alkali-resistant bri...
Professional solutions for you, ready for your choice
Copyright © Zibo Lifa Refractory Materials Factory ALL RIGHTS RESERVED
Technical Support: JinZhao E-commerce
