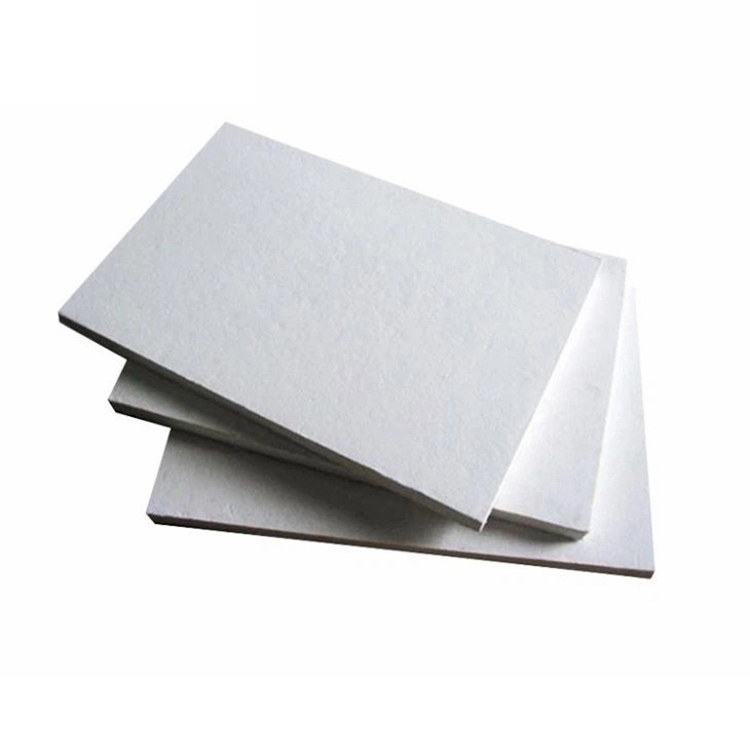

Soluble Fiber Board

Soluble Fiber Board is made of soluble and degradable environmentally friendly fibers at corresponding temperature grades, with inorganic, organic binders and other additives added. This series of products are harmless to human body and environment, and are truly green and environmentally friendly products, which are biodegradable and free of asbestos. Due to the high fiber content, soluble fiberboard is strong, light weight and thermal shock resistant. Features Soluble Fiber Board is highly environmentally safe, soluble and biodegradable; The texture is soft, the irritation is small, and the c

Keywords：

Soluble Fiber Board

Category：

Insulation Thermal Material

E-mail:

154872569@qq.com

Inquiry

Soluble Fiber Board Details

Features

Soluble Fiber Board is highly environmentally safe, soluble and biodegradable;

The texture is soft, the irritation is small, and the content of slag ball is low;

The product can resist far infrared radiation, has a lower thermal conductivity, has better thermal stability, and is more resistant to chemical attack;

Good thermal erosion resistance, low thermal conductivity and low heat capacity;

This product has a flat appearance, accurate dimensions, good strength, can bear a certain weight, and is easy to install and use. It can also perform various mechanical processes, such as cutting and drilling.

Applications

Soluble Fiber Board has the following applications:

Insulation of household thermal equipment such as regenerative electric heaters and ovens

Civil building exterior wall insulation and elevator door fire protection

Insulation of various environmental protection equipment and mine life-saving equipment

Refractory layer or thermal insulation lining of various industrial furnace equipment

Furnace door sealing, flange sealing, pipeline insulation;

Insulation of industrial energy storage equipment;

Insulation, noise reduction and noise reduction of automobile exhaust systems;

Fire protection and insulation of offshore drilling platforms and ships;

High temperature and thermal insulation in the field of nuclear power.

Physical And Chemical Indicators

Brand Properties		Soluble fiber board
Specification Temp. (℃)		1100	1300
Bulk Density (kg/m3)		300	300
(%）@24H Linear Shrinkage after Heating		1000℃x24h≤2.0	1260℃x24h≤2.0
(MPa) Tensile Strength		0.15	0.15
Thermal Conductivity (w/m.k)	400℃	0.08	0.07
	600℃	0.11	0.10
	800℃	0.12	0.11
	1000℃	0.15	0.14
Size(mm)		LENGTHWIDTHTHICKNESS 90060020/25/30/40/50 100050020/25/30/40/50, 100060020/25/30/40/50 1200100020/25/30/40/50, 120060020/25/30/40/50
