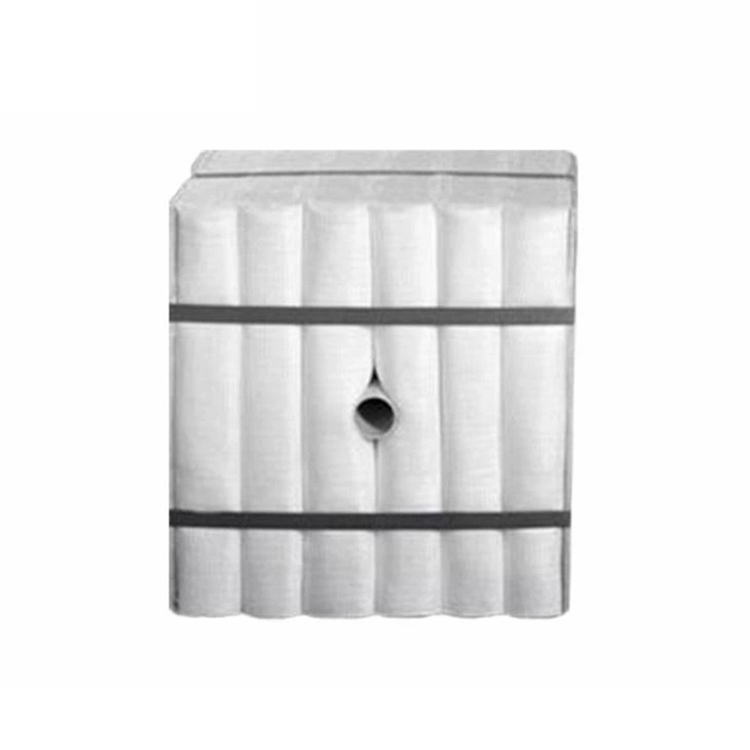

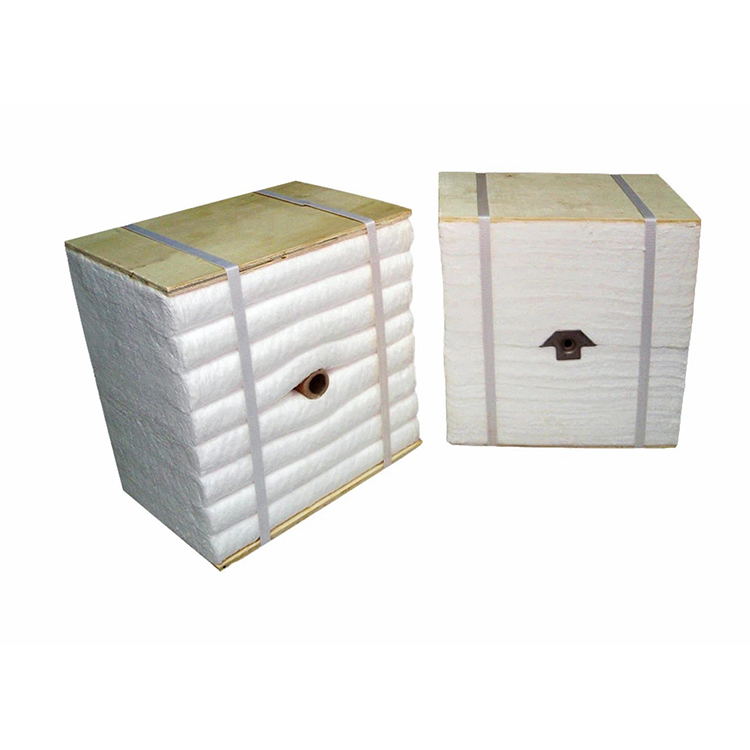

Ceramic Fiber Module Details
Ceramic fiber modules are made from compressed ceramic fiber blanket. These modules are specially designed to meet or improve the thermal insulation requirements of industrial furnaces in some special thermal conditions. The fiber modules are produced with various anchoring systems to enable quick, easy and efficient installation in most furnace linings. Modules have the reliable thermal maintenance and long time treatment. Module linings prevent heat loss, increasing the furnace productivity and reducing maintenance costs.
The ceramic fiber module is a new refractory lining product launched to simplify and speed up the kiln construction and improve the integrity of the lining. The product is white in color and regular in size, and can be directly fixed on the anchor nail of the steel plate of the furnace shell of the industrial kiln. It has good refractory and heat insulation effects, improves the integrity of the refractory and heat insulation of the kiln, and promotes the progress of the kiln masonry technology Classification temperature 1050-1400℃.
The ceramic fiber module has excellent chemical stability and thermal stability, will not release harmful gases after heating, environmental protection and no pollution; excellent elasticity, it is in a pre-compressed state, and it expands after the furnace lining is completed The gap between the lining and the shrinkage of the fiber lining can be compensated to improve the thermal insulation performance of the fiber lining and the overall performance is good; it is easy to install, and the anchor is installed on the cold surface of the wall lining, which can reduce the requirements of the anchor material.
Features
1) The lining has all achieved cold surface fixation, and the anchor is far away from the working heat, which can save the anchor material to a certain extent and reduce the engineering cost.
2) Simple construction and short period: due to the elasticity of the refractory fiber module lining, the amount of compression can be predicted. Therefore, there is no need to leave expansion joints during construction, and the construction personnel can go to work after basic training. The construction technical factors have little effect on the insulation effect of the lining .
3) No oven or health care is needed after construction: refractory fiber folding module lining is adopted.If not restricted by other metal components, it can be quickly raised to the process temperature after construction, which effectively improves the effective utilization rate of industrial furnaces, thereby reducing Fuel consumed for production.
4) Thermal shock resistance: The refractory fiber lining has particularly excellent resistance to severe temperature fluctuations. The fiber lining can be heated or cooled at any fast rate under the premise that the heated part can withstand it.
5) Resistance to mechanical vibration: the fiber blanket has flexibility and elasticity. After being processed into a folded module, the integrity is better, the strength is stronger, and it is not easy to break. The installed complete kiln is subject to shock or vibration from road transportation.
Is not easily damaged.
Applications
Furnace lining and insulation of furnace in Petrochemical industry
Lining and insulation of metallurgical furnaces
Tunnel kilns, shuttle kilns, roller kilns in the ceramic industry
Ladle covers, heating furnaces, hot air pipes and pipes in the steel industry
Waste incinerator in environmental protection and energy saving industry, RTO waste gas treatment furnace, SCR environmental protection catalytic furnace
Furnace lining and insulation in other building materials industries
Specifications
Alumina contents range from 40% to55%
Widely used throughout metallurgical industry
Physical And Chemical Indicators
Brand Properties |
STD Module |
HP Module |
HZ Module |
PC Module |
|
Chemical Composition (%)
|
Al2O3 |
44 |
45 |
34 |
71 |
SiO2 |
52 |
54 |
50 |
27 |
|
Fe2O3+TiO2 |
1.0 |
0.5 |
0.5 |
- |
|
ZrO2 |
- |
- |
15 |
- |
|
K2O+Na2O+Fe2O3 |
1.0 |
0.2 |
0.2 |
0.2 |
|
Bulk Density (kg/m3) |
128—240 |
128—240 |
128—240 |
128-196 |
|
Specification Temp. (℃) |
1260 |
1350 |
1430 |
1600 |
|
Linear Shrinkage after Heating (%) |
1000℃X24h≤2.5 |
1000℃X24h≤2.5 |
1000℃X24h≤3.5 |
1400℃X24h≤1.0 |
|
Thermal Conductivity (w/m.k) |
400℃ |
0.090 |
0.101 |
0.118 |
0.09 |
500℃ |
0.119 |
0.120 |
0.149 |
0.133 |
|
600℃ |
0.152 |
0.175 |
0.172 |
0.160 |
|
Size(mm) |
LENGTH:250-600 WIDTH:200-400 THICKNESS:200-400 |
LENGTH:100-600 WIDTH:150-300 THICKNESS:200-300 |
