Ceramic Fiber Textiles contains ropes, tapes, yarns and cloths of bio-soluble fibers. The product has high strength, good flexibility and strong processability. It not only has high temperature insulation performance, but also has the flexibility of ordinary textiles. It has light weight, high temperature resistance, good thermal stability, low thermal conductivity, low specific heat and resistance to mechanical vibration. It can be widely used in machinery, metallurgy, chemical industry, petroleum, ceramics, glass, electronics and other industries. Features High temperature resistance Low ther
Keywords:
Category:
Insulation Thermal Material
E-mail:
154872569@qq.com
Ceramic Fiber Textiles Details

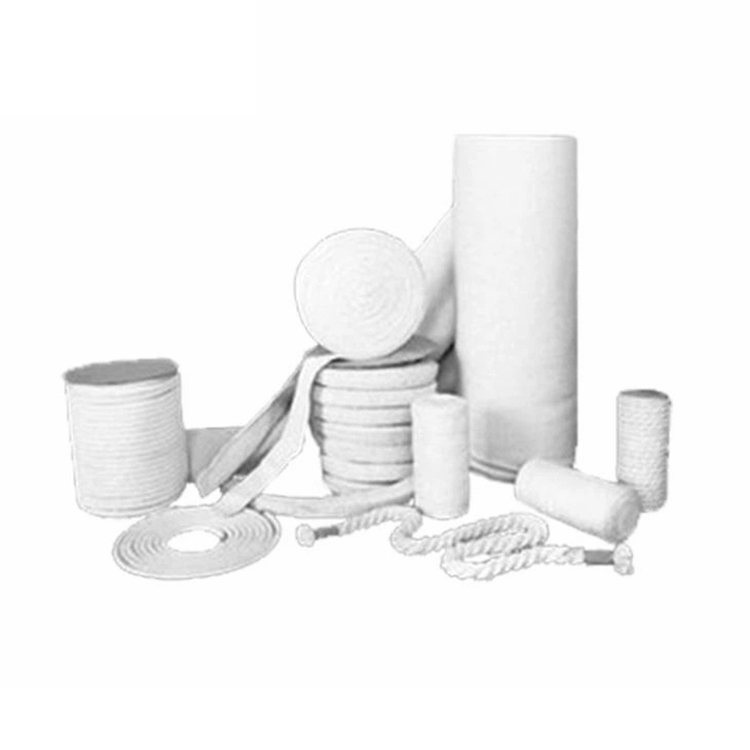

Ceramic Fiber Textiles contains ropes, tapes, yarns and cloths of bio-soluble fibers. The product has high strength, good flexibility and strong processability. It not only has high temperature insulation performance, but also has the flexibility of ordinary textiles. It has light weight, high temperature resistance, good thermal stability, low thermal conductivity, low specific heat and resistance to mechanical vibration. It can be widely used in machinery, metallurgy, chemical industry, petroleum, ceramics, glass, electronics and other industries.
Features
High temperature resistance
Low thermal conductivity
Excellent thermal and chemical stability
High tensile strength
Light weight
Convenient for processing and using
Dust-proof
Pollution resistance
Excellent mechanical strength and thermal shock resistance
Excellent corrosion resistance to acid, oil and water vapor
Applications
Ceramic Fiber Textiles have the following applications:
External insulation for industrial furnaces, machinery and pipelines.
Used for welding EDM cloth in construction, shipbuilding and large-scale construction equipment industry.
Fire and heat insulation of rail vehicles, vehicle transportation insulation
Can be processed into architectural fire curtains, fire clothes (aluminum package), fire gloves, fire shoes, etc.
Insulation of high temperature pipes and vessels
Protection cable or fuel pipe
Flange connection and furnace door seal
Flexible expansion joint connection
Physical And Chemical Indicators
Brand Properties |
Bio-Soluble fiber rope/cloth/tap/yarn |
Ceramic fiber rope/cloth/tap/yarn |
|||
GF-Rope/Cloth/ Tape/Yarn |
SS-Rope/Cloth/ Tape/Yarn |
GF-Rope/Cloth/ Tape/Yarn |
SS-Rope/Cloth/ Tape/Yarn |
||
Specification Temp. (℃) |
1260 |
||||
Working Temp. (℃) |
500-600 |
1100 |
500-600 |
1100 |
|
Bulk Density (kg/m3) |
500 |
||||
Organic matter (%) |
15 |
||||
Moisture Content(%) |
1 |
||||
Chemical Composition(%) |
SiO2 |
55-65 |
51 |
||
CaO |
23-35 |
-- |
|||
MgO |
5月10日 |
-- |
|||
Al2O3 |
-- |
45 |
|||
Fe2O3 |
-- |
0.8 |
|||
Reinforced material |
Glass Filament |
Stainless steel 304 |
Glass Filament |
Stainless steel 304 |
|
Note: Rope Dia size :(mm)6/10/12/20/25/32/38/50, Rope Shape: Round Braided Rope& Twisted Rope &Square Braided Rope |
