Phlogolite Mica Roll Details

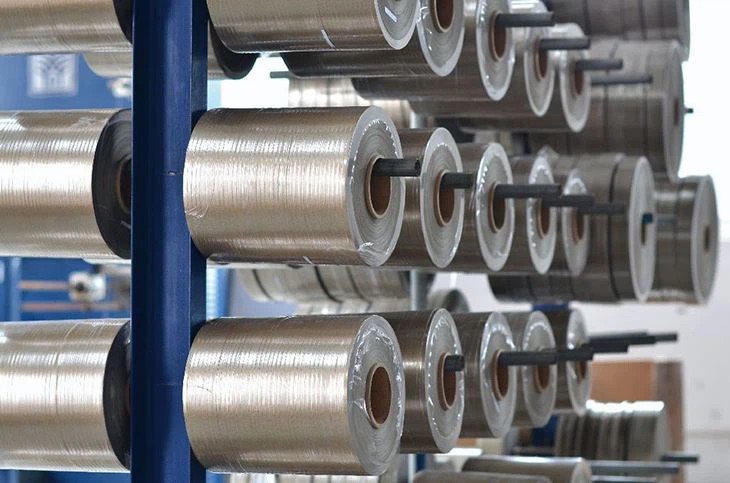

Phlogolite mica rolls are made by phlogopite paper, glass fiber cloth and silicone resin through special process. The thickness is between 0.2-0.8mm, the length is 25 meters to 100 meters, and the width is 1 meter. Phlogolite mica roll compared with the soft mica board, due to the addition of glass fiber material, it has a stronger tensile capacity; compared to the mica tape because of its increased thickness, the single layer is more resistant to voltage breakdown. Phlogolite mica rolls are mainly used as high temperature insulation materials for furnaces.
Combi mica roll consist of phlogopite mica paper impregnated with a speciial silicone resin on gladd cloth(or Biologic /harmless ceramic )depending on application.The products has great flexibility and high tensile strength an can be used to create inorganic,fire-resistant insulation for furnace.
Features
High temperature resistance and excellent insulation properties
Good flame retardancy
Acid, alkali and oil resistant
Good flexibility
Environmental protection, no asbestos
Storage
Store in a dry and moisture-proof room temperature
Application
Electronic appliances, instrumentation, computers, audio, medical equipment, industrial control cabinets, metal lighting, handicrafts, glass, ceramics, home appliances, spraying, furniture, furniture,
Packaging of high-end fragile gift packaging, hardware, toys, melons, fruits, leather shoes, daily necessities and other products such as alcohol and resin.
After adding the color antistatic agent and flame retardant, its outstanding performance is more obvious. It is not only beautiful in appearance, but also effectively prevents static electricity and ignition.
A large number of elastic linings for handbags, industrial sound insulation, thermal insulation materials, agricultural insulation materials, sports mats, pads, etc.
Physical And Chemical Indicators
Brand Property |
Mica Roll |
||||||
TP-RMG / TP-RMGM / TP-RGMG |
|||||||
Thickness (MM) |
0.2±0.03 |
0.3±0.03 |
0.4±0.03 |
0.5±0.03 |
0.6±0.03 |
0.7±0.03 |
0.8±0.03 |
Weight ( g/m²) |
310±30 |
500±30 |
650±50 |
850±50 |
1000±50 |
1150±50 |
1350±50 |
Mica content (%) |
>80 |
>80 |
>80 |
>80 |
>80 |
>80 |
>80 |
Glass content (%) |
5-10 |
5-10 |
5-10 |
5-10 |
5-10 |
5-10 |
5-10 |
Binder content (%) |
10-15 |
10-15 |
10-15 |
10-15 |
10-15 |
10-15 |
10-15 |
Tensile strength (N/15mm) |
≥200 |
≥200 |
≥400 |
≥400 |
≥400 |
≥400 |
≥400 |
Fire grades (℃) |
750℃ ~ 950℃ |
||||||
Size(mm) |

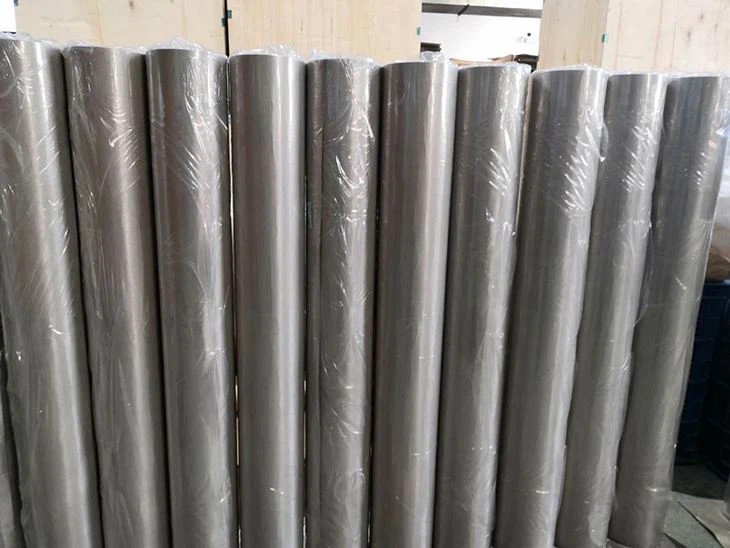

In roll form, width:1000 mm, length: 20m or 25m/ roll, can be customer made
|
