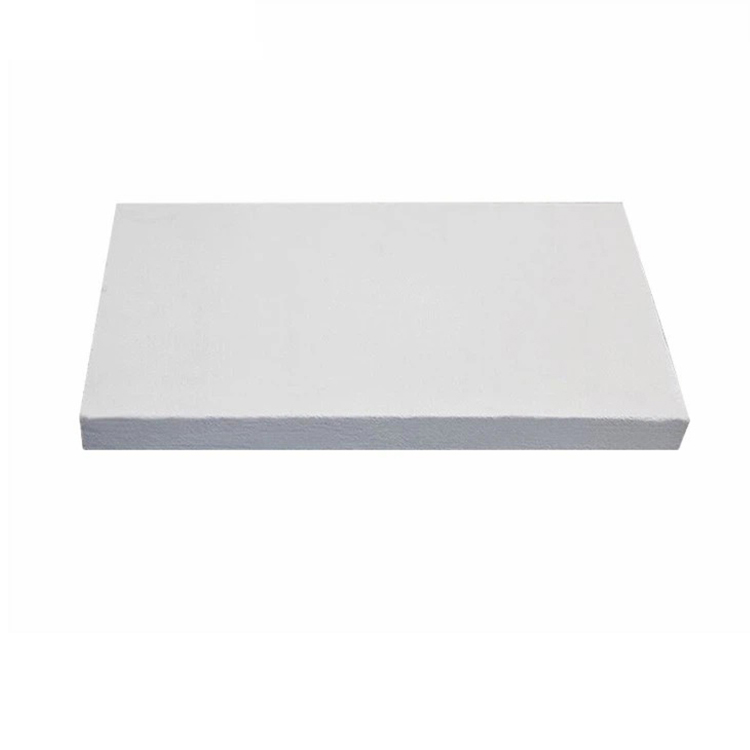

Microporous Board Details
Microporous board uses light, inorganic nano SiO2 and ceramic fiber with extremely low thermal conductivity as raw materials, and uses aluminum foil with high reflectivity as the bottom material. The thermal conductivity is smaller than that of still air, and the thermal insulation performance is about 4 to 6 times better than traditional thermal insulation materials. So far, microporous board is a thermal insulation material with good performance.
Microporous board has thermal conductivity, which can save energy compared with using traditional thermal insulation materials, with a pipe diameter of 150mm. Take a pipeline with a temperature of 600 degrees as an example. When the thickness is only one-third of the thickness of traditional mineral wool, each meter of pipeline saves 1,400 kilowatt-hours of electricity each year, and a pipeline with a total length of 1,000 meters saves about 1.4 million kilowatt-hours of energy each year.
Physical And Chemical Indicators
Description |
MICROPOROUS 60H BOARD
|
MICROPOROUS 90H BOARD |
MICROPOROUS 105H BOARD |
Recommended Temperature of Use (℃) |
600 |
900 |
1050 |
Density (kg/m3) |
300/320 |
280/300 |
320 |
Modules of Rupture (MPa) |
≥0.15 |
≥0.15 |
≥0.15 |
Compressive Strength (MPa,10% relative deformation) |
≥0.3 |
≥0.3 |
≥0.3 |
Permanent Linear Shrinkage (%) |
600℃ x24h≤2.0 |
900℃ x24h≤2.0 |
1050℃ x24h≤2.5 |
Thermal Conductivity (W/m-K) |
|||
100℃ |
0.022 |
0.020 |
0.022 |
200℃ |
0.024 |
0.023 |
0.024 |
300℃ |
0.028 |
0.026 |
0.031 |
400℃ |
0.029 |
0.027 |
0.036 |
500℃ |
- |
0.033 |
0.040 |
600℃ |
- |
- |
0.048 |
Covering Material |
Aluminum Foil/PE Foil/Glass Fiber Cloth |
||
Standard Size (mm) |
600x400x(10-50) |
||
1000x500x(10-50) |
Features
Excellent thermal stability
Excellent thermal shock resistance
Low heat storage
Low thermal conductivity
Applications
Fire protection equipment
Electronic devices
Appliances insulation
Back-up insulation in high-temperature furnaces
