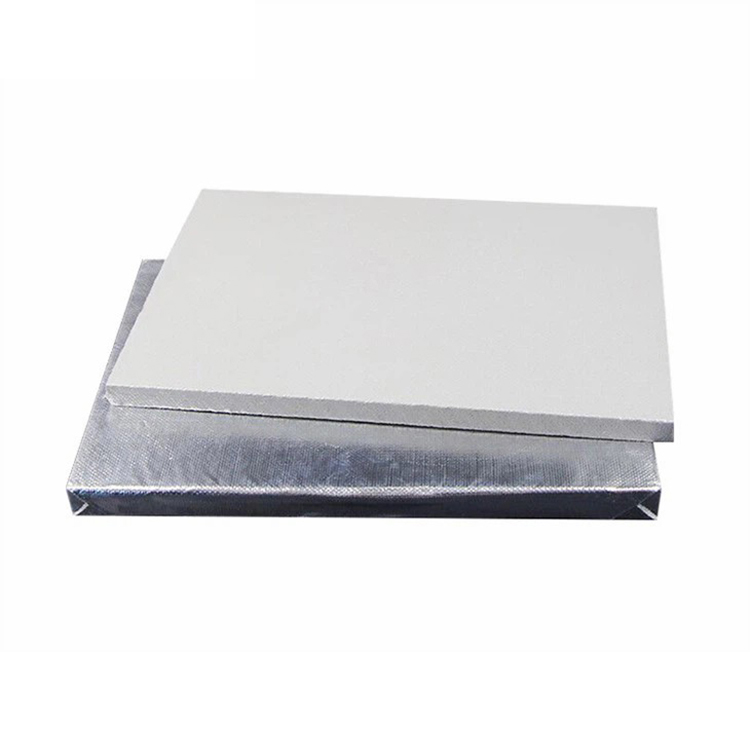

Microporous Plate Details
The thermal conductivity of microporous plate is lower than that of still air. The microporous plate has high compressive strength and cladding strength, and is formed by a special pressing process. Cladding and can be used as insulation/sound insulation for various ducts and complex spaces. Microporous plate are usually covered with fiberglass cloth or aluminum foil.
Application
Back-up insulation in high-temperature furnaces
Fire protection equipment
Rotary & Shaft Kiln
Various Incinerator
General Industrial Furnace etc
Physical And Chemical Indicators
Brand Properties |
JC1050 BOD |
|
Specification Temp. (℃) |
1200 |
|
Working Temp. (℃) |
1050 |
|
Bulk Density (kg/m3) |
320-350 |
|
Compressive strength (MPa) |
0.35 |
|
Thermal Conductivity (w/m.k) |
70℃ |
0.019 |
200℃ |
0.021 |
|
400℃ |
0.024 |
|
600℃ |
0.031 |
|
800℃ |
0.034 |
