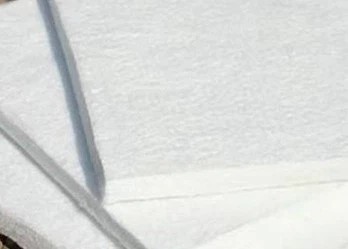

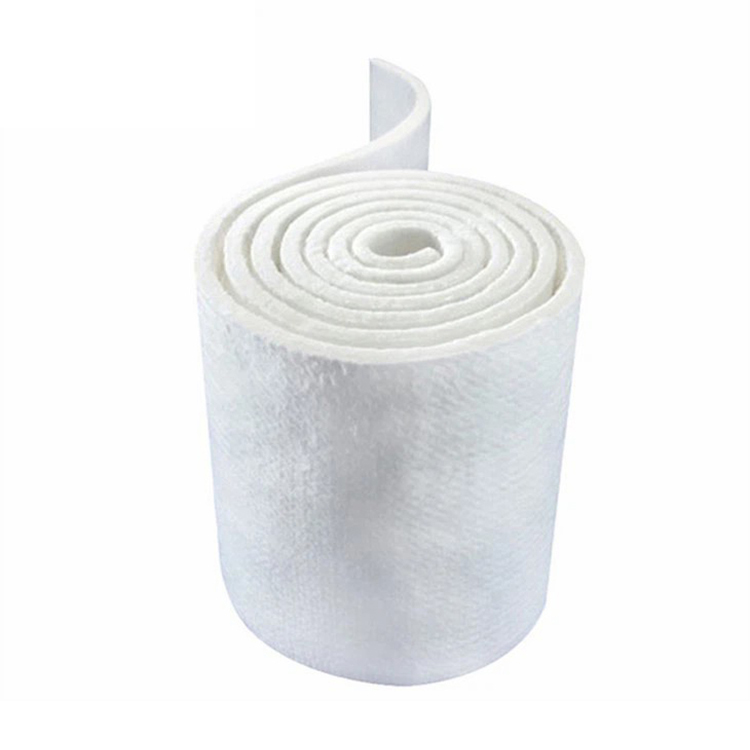

Aerogel Insulation Blanket Details
Aerogel insulation blanket is a flexible thermal insulation material composed of silica airgel as the main material and reinforced fibers such as glass fiber and pre-oxidized fiber.
It has the lowest thermal conductivity of solid insulation materials in the temperature range of 400°C (the thermal conductivity in the high temperature zone of 400-1000°C is much higher than that of micro-nano insulation series).
Airgel has the characteristics of softness, easy cutting, low density, inorganic fire prevention, overall hydrophobicity, and environmental protection. It can replace traditional flexible products such as glass fiber products, asbestos insulation blankets, silicate fiber products, which are not environmentally friendly and have poor thermal insulation performance
1.Low thermal conductivity and low heat capacity
2.Excellent thermal stability
3.Excellent sound absorption and noise reduction
4.Simple construction, safe, environmentally friendly and non-toxic
5.Good water repellency
Brand Property |
Aerogel Insulation Blanket |
Thermal conductivity W/(m.k) |
0.020(25℃),0.036(300℃) |
Maximum service temperature (℃) |
650 |
Density (kg/m³) |
160-240 |
Hydrophobicity rate (%) |
99.9 |
Combustion performance grade |
A |
Compression rebound rate (%) |
96 |
Permanent change rate of heating line (%) |
- 0.3 |
Tensile strength (kpa) |
1409 (landscape orientation),366 (portrait orientation) |
Surface property |
Bulk drain |
Colour |
White/grey blue |
Size(mm) |
Wide:1500±5, Thickness:5/10/15 (customizable 3/6) |

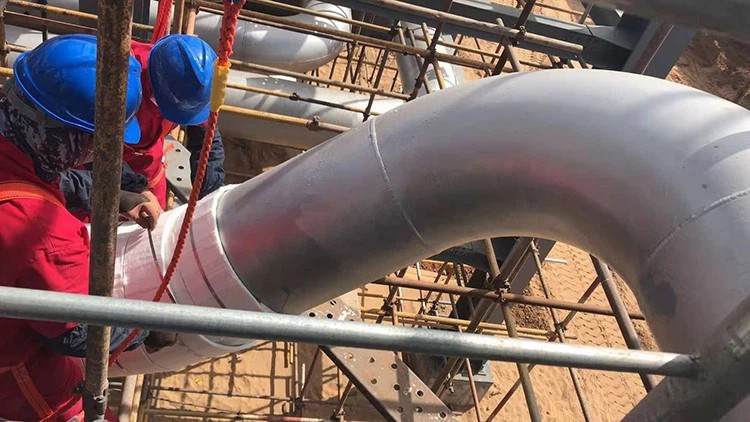

1.Aerogel insulation blankets are commonly used in the oil and gas industry for pipeline insulation, helping to reduce heat loss and energy costs
2.In the automotive industry, It can be used to help reduce engine noise, improve fuel efficiency, and reduce emissions
3.In the construction industry, Aerogel insulation blankets can be used to insulate interior and exterior walls, roofs, and floors from heat loss
4.It can also be used to insulate hot water tanks and pipes, helping to reduce energy costs and improve water efficiency
