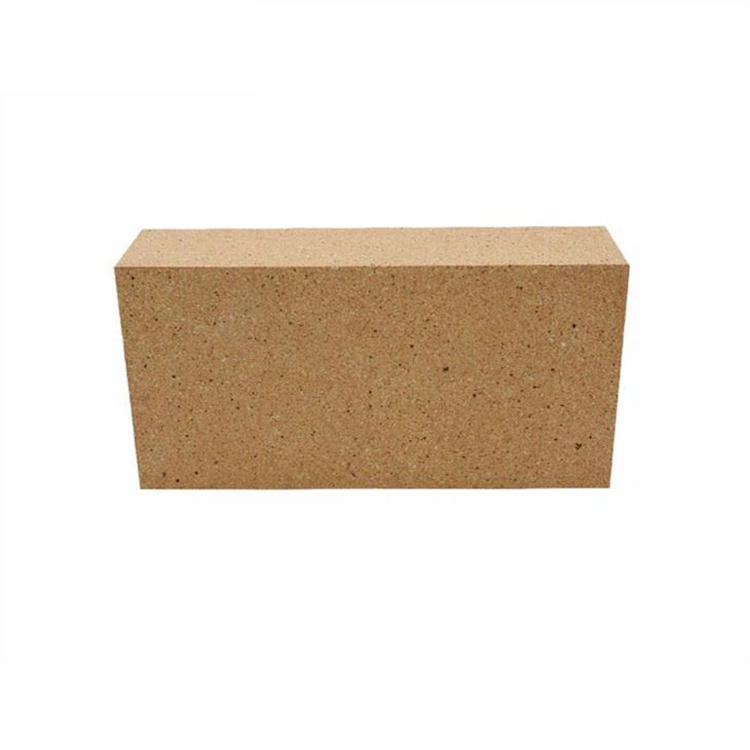

SK33 SK34 Fireclay Brick

Bricks that can withstand high temperatures above I580 C are called refractory bricks. It is a finished product obtained by mixing refractory clay with clinker (calcined and pulverized clay), stirring, pressing and molding, drying and calcining. According to its shape and specifications, it can be pided into two categories: standard type and special-shaped type. Refractory bricks can be pided into ordinary type (refractory degree of 1580 ~ 1770 ℃) and advanced refractory bricks (refractory degree of 1770 ~ 2000 ℃) according to their refractory degree. According to their chemical properties,

Keywords：

Category：

Shape Refractory

E-mail:

154872569@qq.com

Inquiry

SK33 SK34 Fireclay Brick Details

Bricks that can withstand high temperatures above I580 °C are called refractory bricks. It is a finished product obtained by mixing refractory clay with clinker (calcined and pulverized clay), stirring, pressing and molding, drying and calcining. According to its shape and specifications, it can be pided into two categories: standard type and special-shaped type.

Refractory bricks can be pided into ordinary type (refractory degree of 1580 ~ 1770 ℃) and advanced refractory bricks (refractory degree of 1770 ~ 2000 ℃) according to their refractory degree. According to their chemical properties, they can be pided into acid, alkaline and neutral. 3 types.

According to the grades, fireclay brick can be pided into SK32, SK34, SK36, SK38, SK40.

Features

Fireclay brick have wear resistance, corrosion resistance, spalling resistance, low creep, good thermal shock stability and long service life.

Competitive Advantage

Competitive Price

Different Moulds

Strict Quality Control

Professional Packing

Applications

Fireclay brick mainly used for the insulating lining of hot surfaces or backing heat-insulating layers of other refractory materials.Blast furnace, hot blast stove, carbon roasting furnace, carbon calcining furnace, coke oven, ladle, casting system, boiler, cement kiln, glass kiln and various kiln lining and thermal equipment, etc. It is suitable for metallurgy, Machinery, building materials, casting, ceramics, electric power, petroleum, chemical and other industries.

Physical And Chemical Indicators

Brand Properties		SK-34	SK-33	SK-32
Refractoriness (SK)		34	33	32
Apparent Porosity (%)		23	24	26
Bulk Density (g/cm3)		2.2	2.15	2
Cold Crushing Strength (MPa)		35	30	20
Thermal Linear Expansion(%) @ 1,000℃		0.6	0.6	0.6
Permanent Linear Change (%) @ 1,400℃ x 2hrs		±0.3	±0.5	±0.5
Refractoriness under Load (℃) @0.2MPa		1,350	1,300	1,250
Chemical	Al2O3	40	38	35
Composition (%)	Fe2O3	2	2.2	3
Main Applications		- Reheating Furnace - Blast Furnace-Coke Oven,Torpedo Car - Cement Rotary kiln, Various Rotary Kiln - Chemical Reactor, Incinerator, Non Ferrous, Metal Furnace - Glass Murnace-General Industrial Furnace etc.
