Ceramic Fiber Paper is a lightweight refractory material, which is processed from a mixture of high-purity alumina-silica fibers. It can be cut arbitrarily without delamination and slagging. The product has high temperature resistance, chemical corrosion resistance, thermal shock resistance, low thermal conductivity, high electrical insulation strength and high elastic modulus. It is characterized by no asbestos, long fibers, few slag balls, small bulk density, high strength, good elasticity and easy cutting. It is suitable for thermal insulation, heat preservation, sealing, electrical insulati
Keywords:
Category:
Insulation Thermal Material
E-mail:
154872569@qq.com
Ceramic Fiber Paper Details

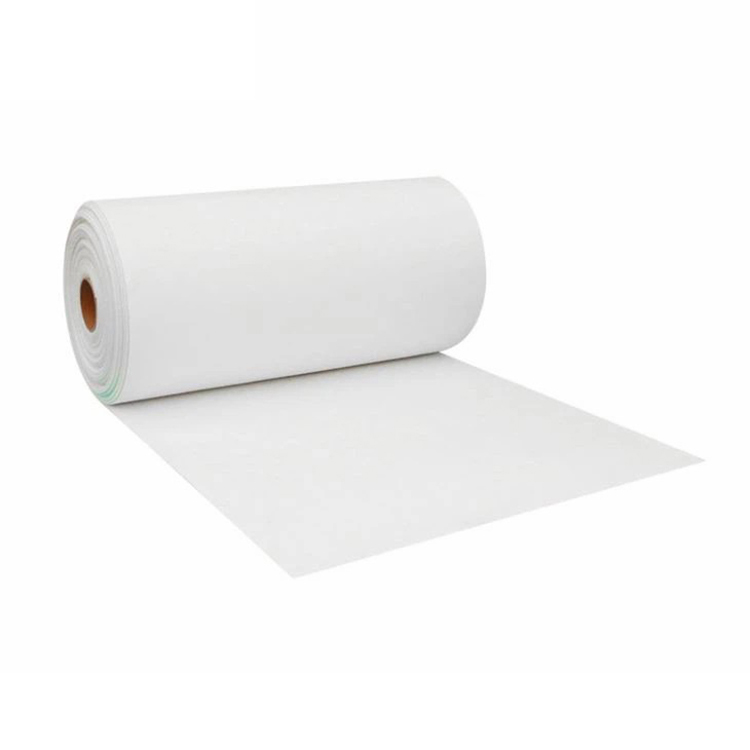

Ceramic Fiber Paper is a lightweight refractory material, which is processed from a mixture of high-purity alumina-silica fibers. It can be cut arbitrarily without delamination and slagging. The product has high temperature resistance, chemical corrosion resistance, thermal shock resistance, low thermal conductivity, high electrical insulation strength and high elastic modulus. It is characterized by no asbestos, long fibers, few slag balls, small bulk density, high strength, good elasticity and easy cutting. It is suitable for thermal insulation, heat preservation, sealing, electrical insulation, sound absorption, filtration, etc. at high temperatures. These unique properties are ideal for use as isolation gaskets in the architectural glass industry.
Product Advantages
It has excellent thermal insulation performance and construction performance, and is particularly suitable for deep processing (multilayer composite materials, stamping, etc.); and has excellent resistance to melt penetration, making it can be used for the separation of casting and washing machines in the construction and glass industries. . Temperatures range from 1260°C (2300°F) to 1430°C (2600°F). This grade of ceramic fiber paper is almost free of projectiles, and both outer surfaces have smooth surfaces. Features include low thermal conductivity, flexibility and good processing strength. This material is highly specialized and can meet the most demanding extreme temperature requirements.
Applications
Our Ceramic Fiber Paper has the following applications:
Asbestos paper replacement
Precision mold-wrapped insulation
One-time consumption of insulation applications
Spare lining for metal tank
Hot top lining
thermal insulation
Equipment thermal insulation material
Electric heating element, metal seal
Insulation materials for the automotive industry
Building materials, metallurgy, glass industry insulation materials
Specifications
Alumina contents range from 40% to 45%
Widely used throughout metallurgical industry
Physical And Chemical Indicators
Brand Properties |
DK-1260 |
DK-1350 |
DK-1430 |
|
Working Temp. (℃) |
1000 |
1100 |
1300 |
|
Specification Temp (℃) |
1260 |
1350 |
1430 |
|
Bulk Density(kg/m3) |
200 |
200 |
200 |
|
Tensile strength(MPa) |
0.4 |
|||
Organic matter content(%) |
≤8 |
|||
Chemical Composition (%) |
Al2O3 |
47 |
48 |
35 |
SiO2 |
52 |
51 |
13-15 ZrO2 |
|
Fe2O3 |
0.5 |
0.5 |
0.2 |
|
NaO2 |
0.2 |
0.2 |
0.2 |
|
Size(mm) |
Length*Width*Thickness 6000*610/1220*10,6666*610/1220*9,7500*610/1220*8 8570*610/1220*7,10000*610/1220*6,12000*610/1220*5 15000*610/1220*4,20000*610/1220*3,30000*610/1220*2 60000*610/1220*1,100000*610/1220*0.5 |
