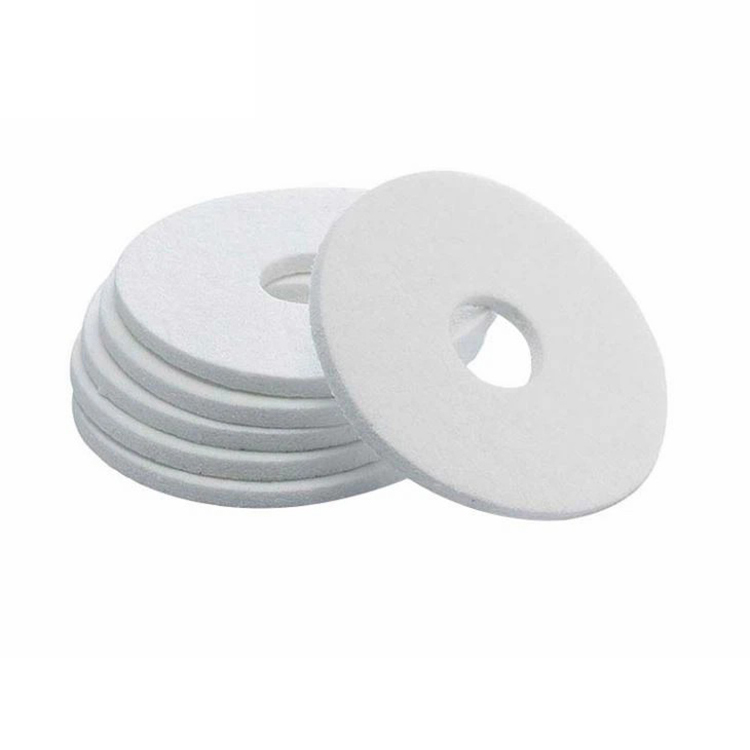

Ceramic Fiber Gasket Details
Ceramic fiber gasket is a kind of high temperature resistant anticorrosive sealing gasket, which can directly contact the flame, and mainly works in a sealed and anticorrosive environment with a temperature higher than 1000℃. The cost is low, and it is an ideal high temperature and corrosion resistant gasket.
The ceramic fiber gasket is a non-brittle material with high strength and accurate size. It can be produced in various forms according to customer needs. It has good heat insulation, sealing and fire resistance, and can directly contact the flame. The classification temperature can reach 1050~1450℃.
Production process: HB hard ceramic fiber paper for gaskets with extremely low slag ball content is completed by boarding, shaping, stamping and other processes. The gasket errors are small and installation and use are convenient. Ceramic fiber gaskets are ceramic fiber shaped products specially produced to meet the heat insulation, sealing and anticorrosion of special parts of some thermal equipment.
Features
Tough texture and strong resistance to wind erosion
Seamless gap lining; low heat storage and less heat loss
Direct flame contact for hot surfaces
Excellent construction and installation performance
Excellent thermal shock resistance
High compressive strength and long service life
The sound absorption effect is remarkable.
Application
Industrial kiln observation hole, thermometer insertion hole
Industrial kiln burner, furnace door
Non-ferrous metal melting ditch, slot liner, casting cap
Electromechanical equipment connection gasket
Physical And Chemical Indicators
type |
name |
structure |
application |
Maximum working temperature |
colour |
YL-1374 |
Fiberglass gasket |
Apply natural rubber on the glass fiber textile cloth and process it into the required gasket shape |
Main uses: low pressure steam, exhaust gas, hot air, etc. manholes, hand holes, large diameter flanges |
400℃ |
White |
YL-1374G |
Graphite treated glass fiber gasket |
Gasket made of anti-sintering treatment (graphite) for DH-1374 |
400℃ |
black |
|
YL-1394 |
Teflon-impregnated glass fiber gasket |
Fiberglass textile cloth is impregnated with PTFE emulsion and processed into the required gasket shape |
Pipes requiring chemical resistance and solvent resistance, corrosive gases such as acid exhaust gas, and general gases |
300℃ |
White |
YL-1400 |
Ceramic fiber gasket |
Apply natural rubber to the ceramic fiber textile cloth with steel wire and process it into the required gasket shape |
Exhaust pipe, flue manhole, boiler combustion furnace sealing material |
800℃ |
White |
YL-1400G |
Graphite treated ceramic fiber gasket |
Gasket made of DH-1400 anti-sintering treatment (graphite) |
800℃ |
black |
