Ceramic Fiber Rope Details

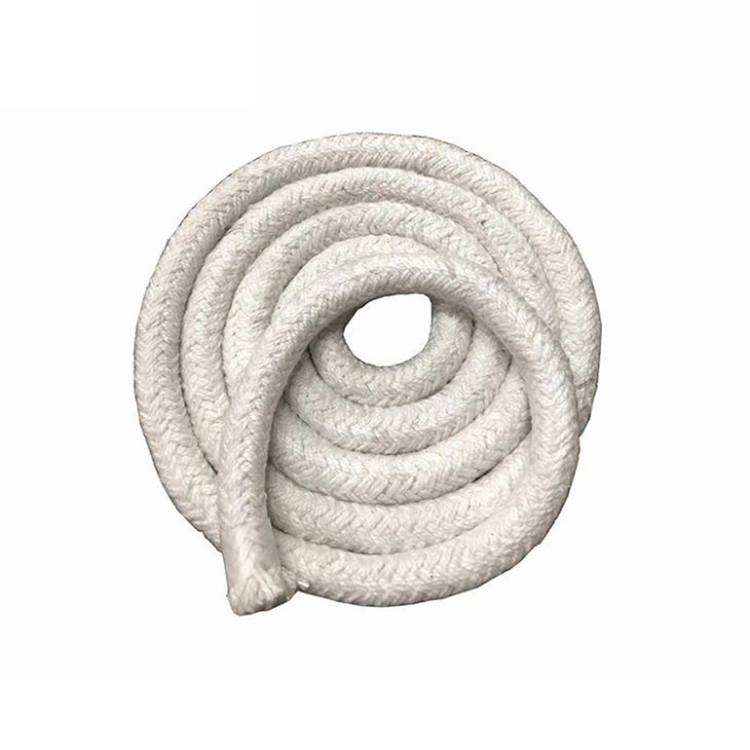

Ceramic fiber rope is made by spinning and weaving special high-strength spinning long fibers with excellent spinnability. According to different use temperature, different use conditions, add different reinforcement materials such as glass fiber or heat-resistant alloy wire. Excellent heat resistance, ceramic fiber rope reinforced with heat-resistant alloy wire, continuous use temperature reaches l260℃.
According to the process, ceramic fiber rope can be pided into ceramic fiber braided round rope, ceramic fiber braided square rope, ceramic fiber twisted rope.
Feature
1. Low thermal conductivity, thermal shock resistance and low heat capacity.
2. High temperature insulation performance and long service life.
3. It has resistance to melting of non-ferrous metals such as aluminum and zinc.
4. With low temperature and high temperature strength.
5. No adverse impact on the environment.
6. Convenient construction and installation.
Application
1. Insulation of various kilns, high temperature pipes and containers.
2. Furnace door, valve, flange seal, fire door and fire shutter material, high temperature furnace door curtain.
3. Insulation of engine and instrument, fireproof cable coating material, high temperature fireproof material.
4. Cloth for heat insulation cover, high temperature expansion material, and flue lining.
5. Labor insurance products, fire-resistant clothing, high-temperature filtration, sound absorption and other fields that replace asbestos applications.
Physical And Chemical Indicators
Brand Properties |
Bio-Soluble fiber rope/cloth/tap/yarn |
Ceramic fiber rope/cloth/tap/yarn |
|||
GF-Rope/Cloth/ Tape/Yarn |
SS-Rope/Cloth/ Tape/Yarn |
GF-Rope/Cloth/ Tape/Yarn |
SS-Rope/Cloth/ Tape/Yarn |
||
Specification Temp. (℃) |
1260 |
||||
Working Temp. (℃) |
500-600 |
1100 |
500-600 |
1100 |
|
Bulk Density (kg/m3) |
500 |
||||
Organic matter (%) |
15 |
||||
Moisture Content(%) |
1 |
||||
Chemical Composition(%) |
SiO2 |
55-65 |
51 |
||
CaO |
23-35 |
-- |
|||
MgO |
5-10 |
-- |
|||
Al2O3 |
-- |
45 |
|||
Fe2O3 |
-- |
0.8 |
|||
Reinforced material |
Glass Filament |
Stainless steel 304 |
Glass Filament |
Stainless steel 304 |
|
Note: Rope Dia size :(mm)6/10/12/20/25/32/38/50, Rope Shape: Round Braided Rope& Twisted Rope &Square Braided Rope |
