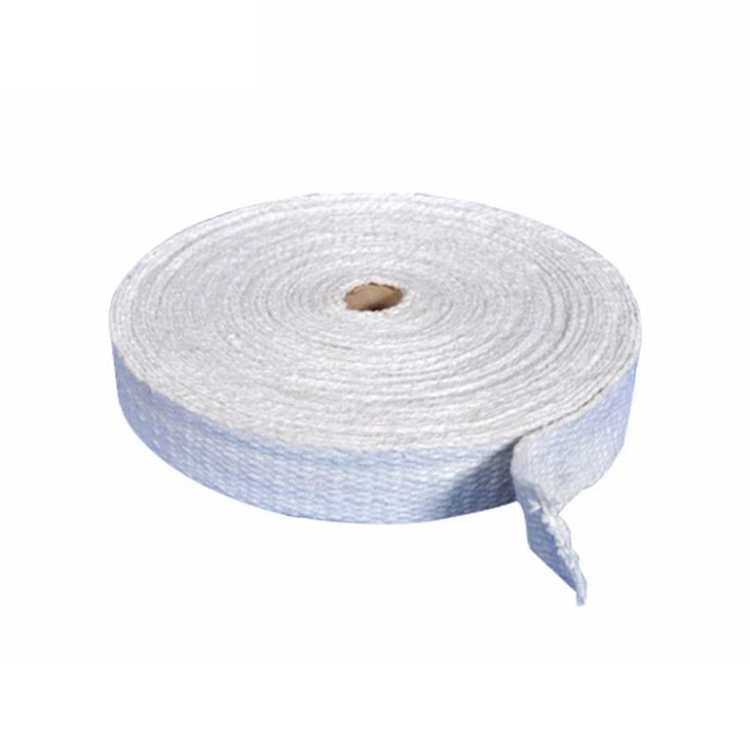

Ceramic Fiber Tape Details
Ceramic fiber tape, also known as ceramic fiber belt, aluminum silicate fiber belt, is a ceramic product with fiber characteristics. Ceramic fiber tape can be used for various thermal equipment and thermal conduction systems as refractory, fireproof, thermal insulation and friction materials.
Ceramic fiber tape is made of loose cotton, with excellent high temperature resistance, low thermal conductivity, light bulk density and good chemical stability, except for hydrofluoric acid, phosphoric acid and strong alkali, it is not affected by most other chemical substances . Wetted by water, water vapor, oil, the physical and chemical properties remain unchanged after drying, the product contains 16%-20% organic fiber, the first use at high temperature, the organic fiber is burned, but does not affect the product Performance.
Feature
1. Continuous use temperature can reach 1000℃, short-term use temperature can reach 1260℃.
2. Lightweight, heat-resistant, small heat capacity, low thermal conductivity. Soft and good heat insulation;
3. The glass fiber tape is not water-absorbing, non-corrosive, non-mildew, moth-eaten, hard to fall, and has tensile strength;
4. Excellent aging resistance;
5. Have good sound absorption, higher than the average requirement of NRC;
6. According to the use requirements, it can be cut, sewn and easy to construct.
7. Good high temperature strength and thermal insulation performance
8. It is inorganic fiber and never burns.
9. With high tensile strength and length stability
10. Has good resistance to acid and alkali corrosion and resistance to aluminum and zinc and other molten metal erosion.
11. Non-toxic, harmless and odorless.
Note: Ceramic fiber textiles contain about 15% organic fibers. When the temperature is increased for the first time, as the temperature increases, the organic fibers in the product will gradually carbonize and become black, and there will be smoke, and there may be flames in some places This is normal and does not affect use. As the temperature continues to rise, the product will gradually become white again, the organic fibers have been completely carbonized, and the products are completely high-temperature resistant inorganic materials such as ceramic fibers.
Application
1. Used for thermal insulation of various heat sources (coal, electricity, oil, gas) high-temperature equipment, air conditioning pipes; electric heating brackets, heating element appliances.
2. It is used for various heat insulation and fireproof materials, high temperature boilers, ovens, and hot air heating equipment.
3. Used for sealing, sound absorption, filtration and insulation materials in special places;
4. Used for heat preservation of various heat transfer and heat storage devices;
5. It is used for sound insulation, heat insulation and heat insulation of vehicles, ships, airplanes and other parts;
6. The sound insulation of the inner core of car and motorcycle muffler and the muffler of the engine.
7. Color steel plate and wood structure house interlayer space thermal insulation.
8. Thermal insulation, chemical pipeline insulation, thermal insulation effect is better than general thermal insulation materials.
9. Thermal insulation of wall panels of household appliances such as air conditioners, refrigerators, microwave ovens, dishwashers, etc.
10. Other occasions requiring thermal insulation, thermal insulation, fire prevention, sound absorption, and insulation
Physical And Chemical Indicators
Brand Properties |
Bio-Soluble fiber rope/cloth/tap/yarn |
Ceramic fiber rope/cloth/tap/yarn |
|||
GF-Rope/Cloth/ Tape/Yarn |
SS-Rope/Cloth/ Tape/Yarn |
GF-Rope/Cloth/ Tape/Yarn |
SS-Rope/Cloth/ Tape/Yarn |
||
Specification Temp. (℃) |
1260 |
||||
Working Temp. (℃) |
500-600 |
1100 |
500-600 |
1100 |
|
Bulk Density (kg/m3) |
500 |
||||
Organic matter (%) |
15 |
||||
Moisture Content(%) |
1 |
||||
Chemical Composition(%) |
SiO2 |
55-65 |
51 |
||
CaO |
23-35 |
-- |
|||
MgO |
5月10日 |
-- |
|||
Al2O3 |
-- |
45 |
|||
Fe2O3 |
-- |
0.8 |
|||
Reinforced material |
Glass Filament |
Stainless steel 304 |
Glass Filament |
Stainless steel 304 |
|
Note: Rope Dia size :(mm)6/10/12/20/25/32/38/50, Rope Shape: Round Braided Rope& Twisted Rope &Square Braided Rope |
